Bosch

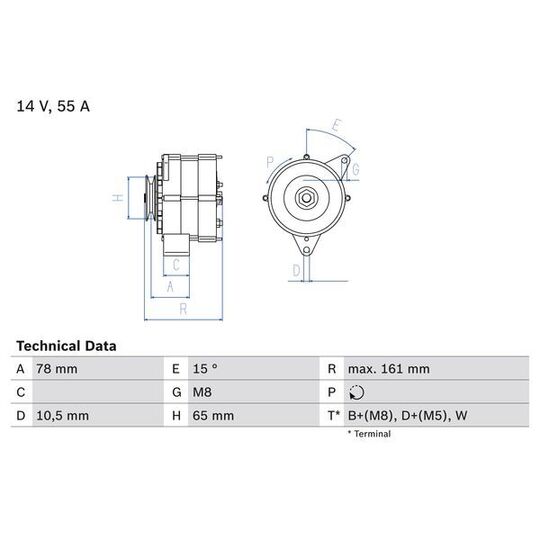

0 986 041 630 Alternator
SKU / part number
Bosch 0 986 041 630 Alternator. Part no. 0-986-041-630. Check specifications, vehicle fitment and references below.
Specifications
Length
161 | mm
Voltage
14 V
Alternator Charging Current
55 A
Fastening Type
Single pivoted lever
Alternator Type
excl. vacuum pump
Distance from belt pulley to alternator
78 mm
Rotation Direction
Clockwise rotation
Pulleys
with belt pulley
Number of grooves
1
Belt Pulley Ø
65 mm
Clamp
B+(M8),D+(M5),W
Recommended additional repairs
V-Belt/V-Ribbed Belt
Trade Numbers
4163
Shipping details
Weight
5.361 Kg
Customs Code
851150
Country of Origin
Germany
Cross-Reference Numbers
| BOSCH | 0 120 488 196, 0 120 488 197, 0 120 488 236, 0 120 488 239, 0 120 488 241, 0 120 488 265, 0 120 489 382, 0 120 489 383, 0 120 489 446, 0 120 489 447, 0 986 036 260, 0 986 036 268 |
|---|---|
| DELCO REMY | DRA6260, DRA6263 |
| HC-PARTS | CA364IR, CA588IR |
| HELLA | 8EL 725 768-001, 8EL 725 871-001 |
| LUCAS ELECTRICAL | LRA00562, LRA562 |
| MAGNETI MARELLI | 943356681, MAR577 |
| SEAT | 036 903 027 D |
| VALEO | 2541221, 2541439, 2541645, 436399, 440027 |
| VW | 031 903 017 C, 031 903 023 B, 031 903 023 C, 036 903 025 B, 036 903 025 S, 036 903 025 T, 036 903 027 B, 036 903 027 D, 036903025, 036903027 |
