Bosch
0 986 047 280 Alternator
SKU / part number
Bosch 0 986 047 280 Alternator. Part no. 0-986-047-280. Check specifications, vehicle fitment and references below.

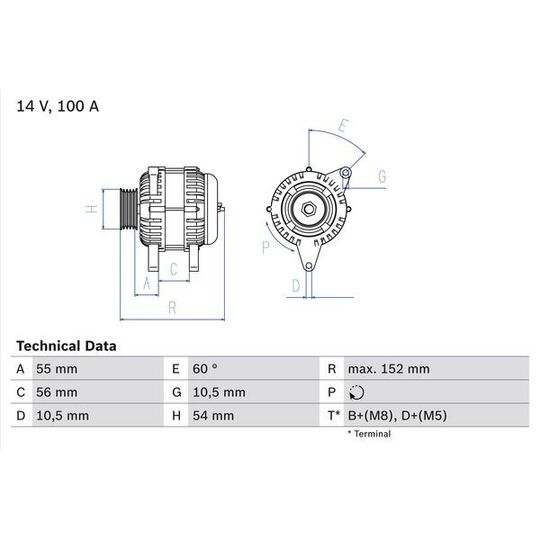

Specifications
Length
152 | mm
Voltage
14 V
Alternator Charging Current
100 A
Fastening Type
Double Pivot Lever
Alternator Type
excl. vacuum pump
Distance from belt pulley to alternator
54.6 mm
Rotation Direction
Clockwise rotation
Pulleys
with multi-belt pulley
Number of grooves
5
Belt Pulley Ø
54 mm
Recommended additional repairs
V-Belt/V-Ribbed Belt
Trade Numbers
4728
Shipping details
Weight
6.929 Kg
Customs Code
851150
Country of Origin
Germany
Cross-Reference Numbers
| BOSCH | 0 124 415 023, 0 124 425 021, 0 124 425 024, 0 986 043 970, 0 986 043 973, 0 986 047 283, 0 986 047 300, 0 986 047 303 |
|---|---|
| DELCO REMY | DRB3970 |
| FIAT | 77363562 |
| HC-PARTS | CA1748IR |
| HELLA | 8EL 738 117-001 |
| HOLDEN | 93 184 055 |
| LUCAS ELECTRICAL | LRA02027, LRA2027 |
| MAGNETI MARELLI | MAN2043 |
| OPEL | 24437120, 55556068, 55556069, 62 04 104, 62 04 137, 62 04 203, 62 04 208, 62 04 237, 62 04 239, 92 00 958, 93175793, 93175941, 93183435, 93184055, 93189240, 93189242, 93189260, 93189262, 95 12 174, 95 12 176, 95 12 782 |
| VALEO | 437603 |
| VAUXHALL | 92 00 958, 93183435, 93184055, R1530034, R1530076, R1530078 |
