Bosch

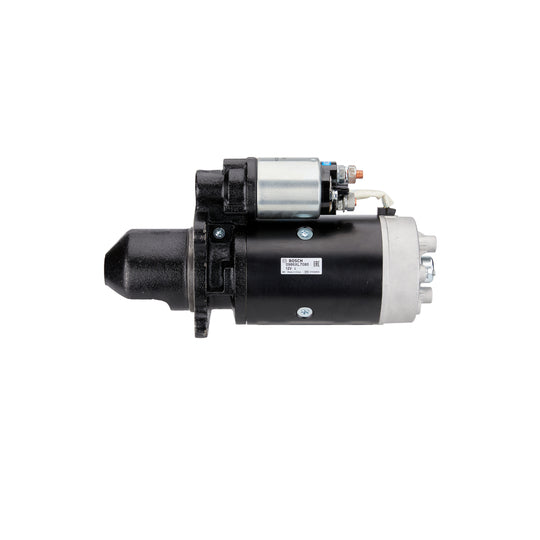

1 986 S10 083 Starter
SKU / part number
Bosch 1 986 S10 083 Starter. Part no. 1-986-S10-083. Check specifications, vehicle fitment and references below.
Specifications
Length
341 | mm
Voltage
12 V
Rated Power
3 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
9
Clamp
30,50
Flange Diameter
89 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
48 mm
Starter Type
Self-supporting
Bore Diameter
10.5 mm
Bore Diameter 2
10.5 mm
Bore Ø 3
10.5 mm
Position/Degree
rechts
Mounting Angle
30 degrees
Jaw opening angle measurement
105 Degree
Mounting bore angle measurement
30 degree
Shipping details
Weight
14.659 Kg
Customs Code
851140
Country of Origin
China
OE Numbers
| CLAAS | 105 356 0 |
|---|---|
| DAF | 1516704R |
| FAUN | 1701 054 |
| MERCEDES-BENZ | 001 151 94 01, 003 151 05 01, 003 151 73 01, 003 151 87 01, 004 151 22 01, 004 151 58 01, A 001 151 94 01, A 003 151 05 01, A 003 151 73 01, A 003 151 87 01, A 004 151 22 01, A 004 151 58 01 |
Cross-Reference Numbers
| BOSCH | 0 001 359 084, 0 001 367 034, 0 001 367 059, 0 001 367 300, 0 001 367 301, 0 001 367 303 |
|---|---|
| CLAAS | 105 356 0 |
| DAF | 1516704R |
| FAUN | 1701 054 |
| LUCAS ELECTRICAL | 26417 |
| MERCEDES-BENZ | 001 151 94 01, 003 151 05 01, 003 151 73 01, 003 151 87 01, 004 151 22 01, 004 151 58 01, A 001 151 94 01, A 003 151 05 01, A 003 151 73 01, A 003 151 87 01, A 004 151 22 01, A 004 151 58 01 |
| ZEN SA | 31035 |
