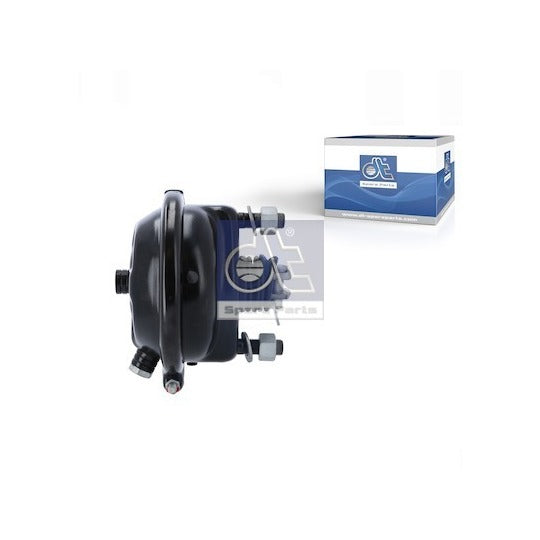

4.62262 Diaphragm Brake Cylinder
SKU / part number
Dt Spare Parts 4.62262 Diaphragm Brake Cylinder. Part no. 4-62262. Check specifications, vehicle fitment and references below.
Specifications
Thread Size
M16 x 1,5
Stroke
57 mm
Piston Rod Length
37 mm
Guarantee
2 years warranty
Version
Type 20
Net Weight
3208 g
Shipping details
Weight
3.5 Kg
Customs Code
870830
Country of Origin
Germany
Cross-Reference Numbers
| AIR FREN | 02.239.020.2, 02.2390202 |
|---|---|
| AUGER | 21027 |
| DAF | 1505026, MBU5172 |
| DT Spare Parts | 02.01.42.204442, DT4.62262 |
| Europart | 3700 000 030 |
| KNORR-BREMSE | 0 482 022 201, 0482022201000, 0482022207000, BZ3440, BZ3444, BZ3464, I75266, I75266AT, I75266ES, I75270, I75270AT, I77743, I77743AT, I77743ES, II38414F |
| MAN | 81.51101.6196, 81.51101.9196 |
| MERCEDES-BENZ | 000 420 7624, 005 420 2018, 006 420 9418, 007 420 3218, 007 420 8718, 007 420 8918, 007 420 9718, A000 420 7624, A005 420 2018, A006 420 9418, A007 420 3218, A007 420 8718, A007 420 8918, A007 420 9718 |
| MERITOR | T.423.205.103, TSK.3.20B.57, TT25.20.002, TT25.20.010, TT25.20.016 |
| PE Automotive | 076.430-00A, 076.431-00A |
| RENAULT | 50 21 170 048 |
| SAMPA | 094.016, 094.016-01 |
| ST-TEMPLIN | 02.110.7117.650 |
| TRUCKTEC AUTOMOTIVE | 01.35.128 |
| TRUCKTECHNIC | T.423.205.103 |
| WABCO | 423 105 111 0, 423 105 703 0, 423 205 103 0 |
