Fag

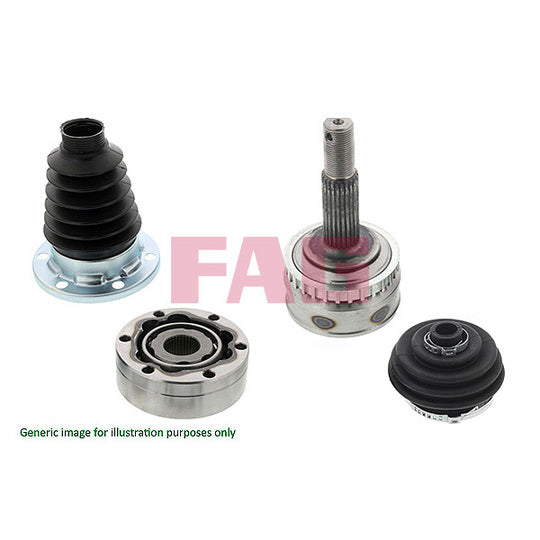

771 0010 30 Joint Kit, drive shaft
SKU / part number
Fag 771 0010 30 Joint Kit, drive shaft. Part no. 771-0010-30. Check specifications, vehicle fitment and references below.
Specifications
Outer Diameter
98 | mm
Joint Type
CV Joint
External Toothing wheel side
38
Internal Toothing wheel side
27
Seal Ring Diameter
59.5 mm
Number of Teeth, ABS ring
45
Bellows Material
NBR (nitrile butadiene rubber)
Shipping details
Weight
2.748 Kg
Customs Code
870850
Country of Origin
China
Cross-Reference Numbers
| AUDI | 3B0 498 099 J, 3B0 498 099 JX, 3B0498099J, 3B0498099JX, 4D0 498 099, 4D0 498 099 A, 4D0 498 099 AX, 4D0 498 099 X, 4D0498099, 4D0498099A, 4D0498099AX, 4D0498099X, 8D0 498 099 D, 8D0 498 099 DX, 8D0 498 099 E, 8D0 498 099 EX, 8D0498099D, 8D0498099DX, 8D0498099E, 8D0498099EX |
|---|---|
| FEBI BILSTEIN | 33226 |
| GLO | 3280K |
| MAGNETI MARELLI | 302015100026 |
| METELLI | 15-1267, 15-1436, 15-1441, 151267, 151436, 151441 |
| MEYLE | 100 498 0064, 1004980064 |
| OPTIMAL | CW-2500, CW2500 |
| RUVILLE | 75717S |
| SCHAEFFLER GRUPPE | 771 0010 30, 771001030 |
| SKF | VKJA 3002, VKJA3002 |
| SKODA | 3B0 498 099 J, 3B0 498 099 JX, 3B0498099J, 3B0498099JX, 4D0 498 099, 4D0 498 099 A, 4D0 498 099 AX, 4D0 498 099 X, 4D0498099, 4D0498099A, 4D0498099AX, 4D0498099X, 8D0 498 099 D, 8D0 498 099 DX, 8D0 498 099 E, 8D0 498 099 EX, 8D0498099D, 8D0498099DX, 8D0498099E, 8D0498099EX |
| SNR | OJK54.001, OJK54001 |
| SPIDAN | 22763 |
| VAICO | V10-7290, V107290 |
| VW | 3B0 498 099 E, 3B0 498 099 J, 3B0 498 099 JX, 3B0 498 099 K, 3B0 498 099 KX, 3B0498099E, 3B0498099J, 3B0498099JX, 3B0498099K, 3B0498099KX, 4D0 498 099, 4D0 498 099 A, 4D0 498 099 AX, 4D0 498 099 X, 4D0498099, 4D0498099A, 4D0498099AX, 4D0498099X, 8D0 498 099 D, 8D0 498 099 DX, 8D0 498 099 E, 8D0 498 099 EX, 8D0498099D, 8D0498099DX, 8D0498099E, 8D0498099EX |
