Gates

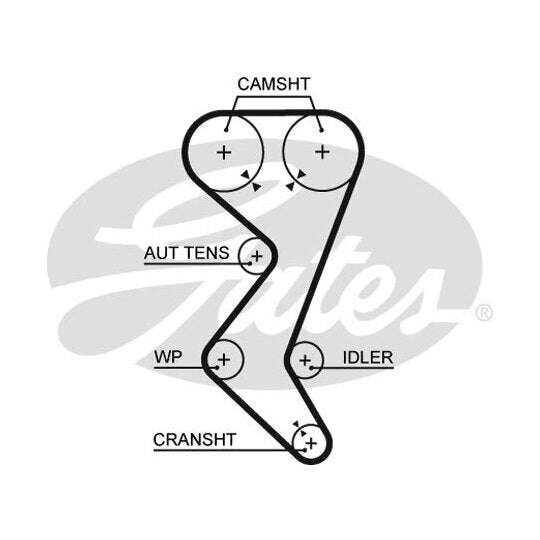

5528XS Timing Belt
SKU / part number
Gates 5528XS Timing Belt. Part no. 5528XS. Check specifications, vehicle fitment and references below.
Specifications
Length
1457 | mm
Width
25 | mm
Article number of the recommended special tool
STT-1
Quality
OE Performance
Tensile Cord Material
Fiberglass
Belt Material
HNBR (hydrogenated nitrile butadiene rubber)
Colour
Black
Number of Teeth
153
Tooth Pitch
9.525 mm
Trade Numbers
8597-15528
Shipping details
Weight
0.225 Kg
Weight Volumetric
0.45 Kg
Customs Code
401035
Country of Origin
France
Cross-Reference Numbers
| ACDelco | AB11390S |
|---|---|
| BEHR HELLA SERVICE | 9XR 376, 817-771 |
| BOSCH | 1 987, 949 500 |
| CITROËN | 0816.A1, 0816.F4, 0816A1, 0816F4, 96372405, 9637240580, 96476100, 9647610080 |
| CONTINENTAL CTAM | CT1003, CT1138 |
| DANA | PMTB511 |
| DAYCO | 153RP254H/1, 153SP254/1, 153SP254H/1, 94905 |
| DOLZ | 05KD046 |
| FAI AutoParts | 10153 |
| FEBI BILSTEIN | 17763 |
| FEDERAL MOGUL | TB683 |
| FENGSHEN | 0816.A1 |
| FIAT | 9400816190, 9464464980, 9637053980, 9637240580 |
| FLENNOR | 4417V, 70153 |
| HELLA | 9XR 376, 817-771 |
| HEPU | 29-0075 |
| LANCIA | 9400816190, 9464464980, 9637053980 |
| LUCAS ELECTRICAL | KCB440 |
| MAGNETI MARELLI | 340018181126 |
| MEYLE | 051 153, 1023 |
| OPTIBELT | HR 70153, X 1, ZRK 1149 |
| PEUGEOT | 0816.A1, 0816.C2, 0816.F4, 0816A1, 0816C2, 0816F4, 96350076, 9635007680, 96350077, 9635007780, 96372405, 9637240580, 96476100, 9647610080 |
| QUINTON HAZELL | QTB619 |
| ROULUNDS RUBBER | 153HP255, RR1126 |
| RUVILLE | 555907 |
| SASIC | 1766015 |
| SKF | TB 03235, VKMT 03235 |
| SWAG | 62 02, 0023 |
| Schaeffler INA | 536 0264, 10 |
| TRISCAN | 8645 5528XS |
| UNIPART | GTB1528XS |
| VEYANCE | G1502H |
