Graf

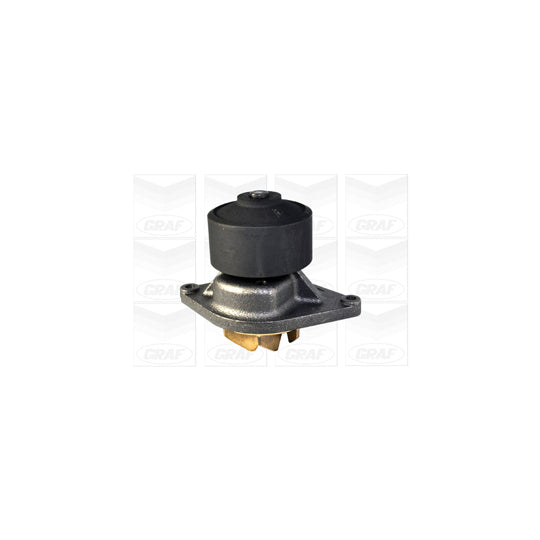

PA1060 Water pump
SKU / part number
Graf PA1060 Water pump. Part no. PA1060. Check specifications, vehicle fitment and references below.
Specifications
Operating Mode
Mechanical
Supplementary Article/Supplementary Info
with seal
Supplementary Article/Supplementary Info
do not use sealant
Number of blades/vanes
7
Water Pump Pulley Diameter
88 mm
Impeller Diameter
82.7 mm
Water Pump Type
for v-ribbed belt use
Water pump impeller material
Brass
Shipping details
Weight
2.596 Kg
Customs Code
841330
Country of Origin
Italy
Cross-Reference Numbers
| ACDelco | 252-920 |
|---|---|
| ADVANCE | T2294 |
| AIRTEX | 1884, AW6222, WP-2151, WPA-1884 |
| CARDONE | 5531412 |
| CARQUEST | 51-2502 |
| CUMMINS | 2881804, 3003749, 3283603, 3285410, 3286275, 3286275RX, 3286277, 3286278, 3286278RX, 3800984, 3802004, 3802348, 3802357, 3802358, 3802439, 3802632, 3802944, 3802970, 3802971, 3802971RX, 3903749, 3913432, 3918107, 3920311, 3920312, 3924128, 3924141, 3927015, 3928395, 3928396, 4089142, 5312296, 5473172, 5524785 |
| DAF | 1399689, 1717036, 451031, CBU1131, CBU1909, CBU2148, CBU2396R, CBU2714 |
| DAYCO | DP1000, DP172 |
| DOLZ | L216 |
| DT Spare Parts | 541012, 760014 |
| Duralast | BWP-2151 |
| EMMERRE | 907299 |
| FEBI BILSTEIN | 38752 |
| FRIMATEC | 2201117, 220884 |
| GATES | 41177, 42291, WP5017HD |
| GEBA | 10324, 10334 |
| GGT | PA13486, PA15045 |
| GK | 981190 |
| GMB | 120-4410, 120-4410IM |
| GNS | YH-CM116, YH-CR151, YH-F294 |
| HELLA | 8MP376808524 |
| HEPU | P1190 |
| INDISA | 452008 |
| IVECO | 0004891252, 2852114, 4891252, 503622660, 504062854, 504066034, 5802470503, 6901409, 6910679 |
| KWP | 101060 |
| LASO | 19200109 |
| MAHLE | CP488000S |
| METELLI | 24-1060 |
| MEVOTECH | NP1881 |
| MEYLE | 14332200004 |
| NAPA | 42291 |
| O.M.P. Aftermarket | 1405020, 1405415, 191100, 191435, 191450, 451020 |
| PART MASTER | 2-2151 |
| PE Automotive | 020.109-00A |
| SCHADEK | 20197 |
| SKF | VKPC7048 |
| URBA | UB0731, UB0734 |
| US MOTOR | US6222, US6222P |
| VETORE | VBD338 |
| VMG | BA630 |
| visun | VS-IV110 |
