Hella

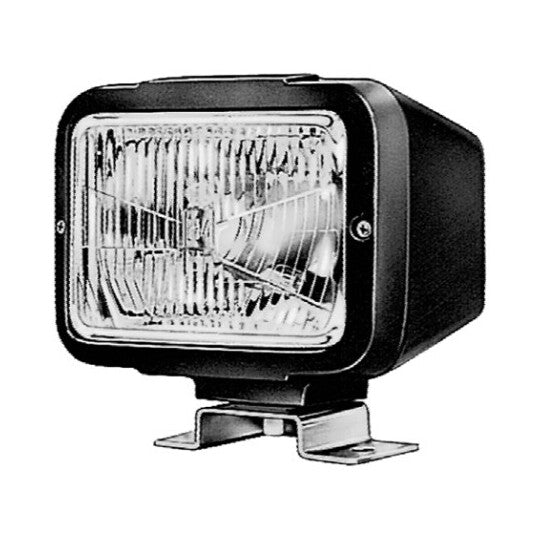

1AB 004 231-001 Headlight
SKU / part number
Hella 1AB 004 231-001 Headlight. Part no. 1AB-004-231-001. Check specifications, vehicle fitment and references below.
Specifications
Diameter
103 | mm
Diameter
136 | mm
Height
168 | mm
Width
194 | mm
Fitting Position
Left
Fitting Position
Right
Left-hand/Right-hand Traffic
for right-hand traffic
Lamp Type
H4
Lamp Type
T4W
Voltage
24 V
Voltage
12 V
Depth
122 mm
Reference number
12.5
Protection Type
IP5K4K IP Code
Illuminated Area
164 x 103 mm
Registration Type
ECE approved
Material
Plastic
Light Design
Halogen
Light Function
with high beam
Light Function
with position light
Light Function
with low beam
Mounting Type
mounting
Supplementary Article/Supplementary Info
with holder
Supplementary Article/Supplementary Info 2
without bulbs
Number of light functions
3
Housing Colour
Black
Country Specific Design
Europe
Trade Numbers
E1 24460, E1 24461
Shipping details
Weight
1.049 Kg
Weight Volumetric
5.245 Kg
Customs Code
851220
Country of Origin
Romania
Cross-Reference Numbers
| AEBI | 233278-1 |
|---|---|
| AGRIFAC | 7742450 |
| AHLMANN | 0029739/0029732, 4191441A |
| BOSCH | 0 301 710 100 |
| CASE IH | 0 112255 4, 2981212, 4620943 |
| CLARK | 3785235 |
| HELLA | 004 231-001, 004231001, E1 24460, E1 24461 |
| HOLDER | 025813 |
| HOLMER | 1019008956 |
| JOHN DEERE | AZ 55 463 |
| KAMAG | 313686, 80313686 |
| KOMATSU | 4241 028 M91, 4241028M |
| KÖGEL | 313686, 80313686 |
| LIEBHERR | 6 905 463, 607148214 |
| MAFI | 000,580,0534 |
| MANITOU | 4191441A |
| MASSEY FERGUSON | 31138 |
| MOTOMETER | 462.094.3 |
| O&K | 2981212, 4620943 |
| REFORM | 900530130 |
| TEREX | 5350659170 |
| VOLVO | 2022-01340, 202201340, 4374363, ZM4374363 |
| YANMAR | 5350659170 |
