Hella

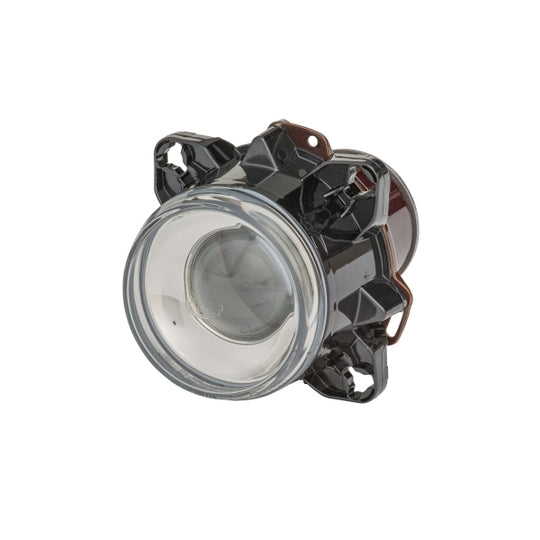

1BL 008 193-011 Insert, headlight
SKU / part number
Hella 1BL 008 193-011 Insert, headlight. Part no. 1BL-008-193-011. Check specifications, vehicle fitment and references below.
Specifications
Diameter
90 | mm
Height
119 | mm
Length
140 | mm
Width
103 | mm
Mounting Type
Fitting
Fastening Type
Three-point mounting
Fitting Position
Left
Fitting Position
Right
Lamp Type
H7
Light Function
with low beam
Light Design
DE
Light Design
Halogen
Voltage
24 V
Depth
165 mm
Diffusing Lens Material
Glass
Plug Type
Blade Terminal
Housing Colour
Black
Lens Colour
Crystal clear
fulfils ECE standard
R112
fulfils ECE standard
R8
Quantity
1
Illuminated Area
90 mm
Number of light functions
1
Reference number
12.5
Registration Type
ECE approved
Registration Type
CCC approved
Shape
round
Left-hand/Right-hand Traffic
for right-hand traffic
Supplementary Article/Supplementary Info
with bulb
Supplementary Article/Supplementary Info 2
with fastening material
Trade Numbers
90 mm Classic, E1 917
Shipping details
Weight
0.475 Kg
Weight Volumetric
2.375 Kg
Customs Code
851220
Country of Origin
Romania
Cross-Reference Numbers
| ALEXANDER DENNIS | AP103-4007, USE 1LL 008 193-127 |
|---|---|
| AUWÄRTER | 11073768, 821-HSW036, 821-HSW036/FSW007 |
| BMC | 58RS170464 |
| BUCHER | 46/414 |
| BUSSCAR | 10.086604 |
| CATERPILLAR | 299-1812 |
| CLAAS | 100 221 40 |
| DAF | 1541105 |
| DURSO | E4007.05033 |
| EVOBUS | A000820559- |
| FORD | 3C4613005AA, 3C4613D146AA |
| GOLDHOFER | 257940 |
| HELLA | 008 193-011, 008193011, 1BL 008 193-001, 1BL 008 193-005, 1BL 008 193-007, 1BL 008 193-017, 1BL 008 193-037, 1LL 008 193-117, E1 917 |
| HITACHI | AA01BAW |
| IKARUS | 700.04-0093-017, 70004-93017 |
| ISUZU | 387002471051 |
| IVECO | 5001021037, 5006143112, 503247218, 8010004117MO |
| JOHNSON CONTROLS | 46/414 |
| KRAUSS-MAFFEI | 10041461 |
| KÄSSBOHRER | 7.512.037.000.0 |
| LIEBHERR | 1 002 214 0 |
| LOHR | A04011220 |
| LOTUS (YOUNGMAN) | T4101.130.010 |
| MAN | 11073768, 36.25101-6001 |
| MERCEDES-BENZ | 000 820 05 59, A 000 820 05 59 |
| NEOPLAN | 1107.376.8, 36.25101-6001 |
| NOGE | 0270200040 |
| NOVABUS | N39427 |
| PLAXTON | USE 1LL 008 193-12 |
| PREVOST | N39427 |
| ROSENBAUER | 43691, 566487 |
| SCANIA | 1870737 |
| SISU | 187-101-3431 |
| SOLARIS | 0000-055-820, 1503-193-017, 3400-001-936 |
| TAM | 5898218, 5985218 |
| TATA | 48 142 39 031 |
| TEREX | W631718 |
| VAN HOOL | 10719522, 10719622 |
| VDL | 287825, 30000111 |
| VISEON | 44.15564-0001 |
| VOLVO | 11117172, 70324425, 70347710, 8001331900002 |
| YUTONG | 4121-00147 |
