Hella

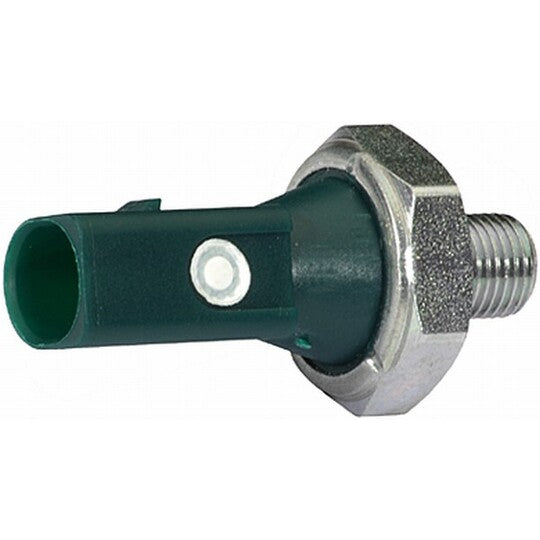

6ZL 008 280-001 Oil Pressure Switch
SKU / part number
Hella 6ZL 008 280-001 Oil Pressure Switch. Part no. 6ZL-008-280-001. Check specifications, vehicle fitment and references below.
Specifications
Tightening torque from
20 Nm
Voltage
12 V
Switch Function
Normally Open Contact
Current Strength
0.150 A
Tolerance
15 %
Thread Size
M10x1
Spanner Size
24
Pressure from
0.3 bar
Pressure to
0.6 bar
Number of pins
1
Corresponds to the original part in colour
Green
Shipping details
Weight
0.039 Kg
Customs Code
902620
Country of Origin
Germany
Cross-Reference Numbers
| AUDI | 036 919 081 A, 036 919 081 B, 036 919 081 C, 036 919 081 D, 06A 919 081 C |
|---|---|
| FACET | 7.0139 |
| FAE | 12881, 12881F |
| HELLA | 008 280-001, 008280001 |
| HERTH+BUSS ELPARTS | 70 541 070 |
| METZGER AUTOTEILE | 0910096 |
| SEAT | 036 919 081 A, 036 919 081 B, 036 919 081 C, 036 919 081 D, 06A 919 081 C |
| SKODA | 036 919 081 A, 036 919 081 B, 036 919 081 C, 036 919 081 D, 06A 919 081 C |
| VEMO | V15-99-1999 |
| VW | 036 919 081 A, 036 919 081 B, 036 919 081 C, 036 919 081 D, 06A 919 081 C |
