Hella

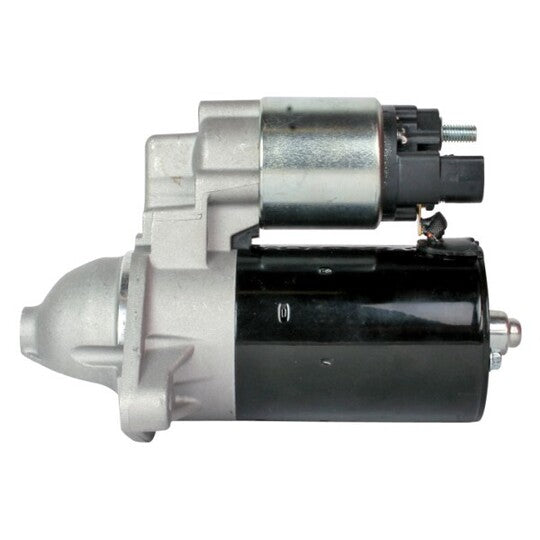

8EA 012 526-431 Starter
SKU / part number
Hella 8EA 012 526-431 Starter. Part no. 8EA-012-526-431. Check specifications, vehicle fitment and references below.
Specifications
Voltage
12 V
Rated Power
1.1 kW
Number of mounting bores
2
Pinion Rest Position
16 mm
Number of Teeth
11
Rotation Direction
Clockwise rotation
Flange Diameter
74 mm
Number of threaded holes
1
Trade Numbers
JS1236
Shipping details
Weight
3.303 Kg
Customs Code
851140
Country of Origin
China
Cross-Reference Numbers
| ARTEC | 48212742 |
|---|---|
| BOSCH | 0 001 107 088, 0 001 107 433, 0 001 107 434, 0 986 018 480, 0 986 018 481, 1 986 S00 671 |
| BV PSH | 190.536.112.010, 190.536.112.050, 190.536.112.210, 190.536.112.215, 190.536.112.265, 190.536.112.670 |
| CASCO | CST10250 |
| DELCO REMY | DRS3935, DRS8480 |
| DENSO | 228000-7591 |
| ELSTOCK | 25-2404, 25-2472, 25-4248 |
| EUROTEC | 11040602, 11040691 |
| FEBI BILSTEIN | 193231 |
| FRIESEN | 8018480 |
| HC-Cargo | 113271, F 032 113 271 |
| HELLA | 012 526-431, 012526431, 8EA 738 002-001 |
| LUCAS ELECTRICAL | LRS01509, LRS02576, LRT00244 |
| MEAT & DORIA | 5010152 |
| NK | 4718570 |
| PowerMax | 8212742, 88212742 |
| TOYOTA | 28100-0D030, 28100-0D130, 28100-22040, 28100-22041 |
| VALEO | 446527, 458313, 458314 |
