Hella
8EA 012 528-101 Starter
SKU / part number

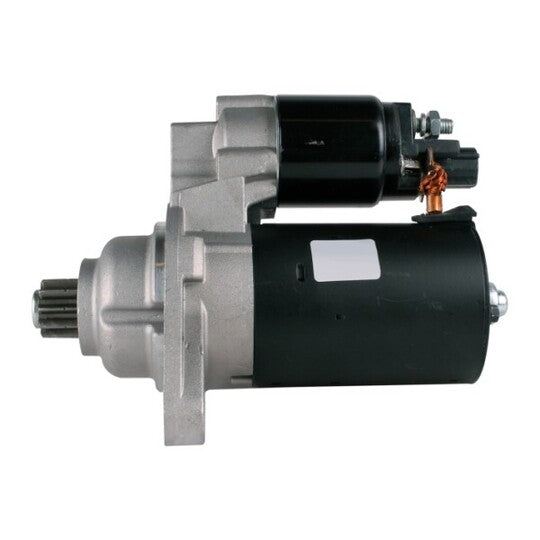

Hella 8EA 012 528-101 Starter. Part no. 8EA-012-528-101. Check specifications, vehicle fitment and references below.
Specifications
Voltage
12 V
Rated Power
1.1 kW
Number of mounting bores
3
Pinion Rest Position
59 mm
Number of Teeth
10
Rotation Direction
Anticlockwise rotation
Flange Diameter
76 mm
Trade Numbers
CS1322
Shipping details
Weight
3.266 Kg
Customs Code
851140
Country of Origin
China
Cross-Reference Numbers
| ARTEC | 48212873 |
|---|---|
| ATL Autotechnik | A 20 330 |
| AUDI | 0AH 911 023, 0AH 911 023 A, 0AH 911 023 D, 0AH 911 023 K |
| BOSCH | 0 001 120 410, 0 001 120 411, 0 001 121 410, 0 001 121 411, 0 986 020 330, 0 986 020 330 090, 0 986 020 331, 1 986 S00 782 |
| BV PSH | 300.562.103, 300.562.103.000, 300.562.103.010, 300.562.103.210, 300.562.103.500, 300.562.103.670 |
| Bosch WSAC | F042S0H098, STR-H098 |
| CASCO | CST10254, CST15261 |
| DELCO REMY | DRT0330 |
| DELTA | A 20 330 |
| DENSO | DSN3026 |
| ELSTOCK | 25-3217 |
| ERA | 220467A |
| EUROTEC | 11020330 |
| FEBI BILSTEIN | 101628 |
| HC-Cargo | 114175, F 032 114 175 |
| HELLA | 012 528-101, 012528101, 8EA 738 158-001 |
| LUCAS ELECTRICAL | LRS01671 |
| MAGNETI MARELLI | MSN2096 |
| MEAT & DORIA | 5015287 |
| PowerMax | 8212873, 88212873 |
| SEAT | 0AH 911 023, 0AH 911 023 A, 0AH 911 023 D, 0AH 911 023 K |
| SKODA | 0AH 911 023, 0AH 911 023 A, 0AH 911 023 D, 0AH 911 023 K |
| VALEO | 201137, 458393, 460465 |
| VEMO | V10-12-21410 |
| VW | 0AH 911 023, 0AH 911 023 A, 0AH 911 023 D, 0AH 911 023 K |
