Hella
8EA 012 586-101 Starter
SKU / part number

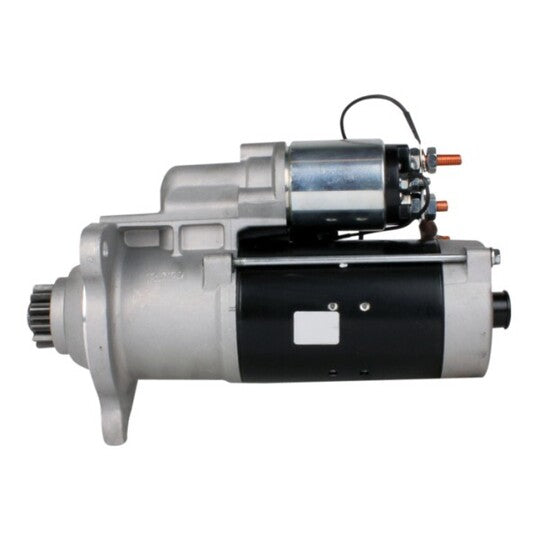

Hella 8EA 012 586-101 Starter. Part no. 8EA-012-586-101. Check specifications, vehicle fitment and references below.
Specifications
Voltage
24 V
Rated Power
5.5 kW
Number of mounting bores
3
Pinion Rest Position
48 mm
Number of Teeth
12
Rotation Direction
Clockwise rotation
Flange Diameter
92 mm
Trade Numbers
CS1399
Shipping details
Weight
9.225 Kg
Customs Code
851140
Country of Origin
China
Cross-Reference Numbers
| ALANKO | 10439814 |
|---|---|
| ARTEC | 48213049 |
| AS-PL | S0138, S0138SR, S0450, S0450(SEG), S0450SR, S0683S, S0883(SEG), S5192 |
| ATL Autotechnik | A 21 480 |
| BOM-Prestolite | M90R3545SE |
| BOSCH | 0 001 241 001, 0 001 261 001, 0 001 261 002, 0 001 261 025, 0 001 261 026, 0 001 261 027, 0 001 261 028, 0 986 021 480, 0 986 021 480 090, 0 986 021 481, 1 986 S10 002, 1 986 S10 047, F 042 002 135 |
| BV PSH | 911.502.123, 911.502.123.010, 911.502.123.011, 911.502.123.210, 911.502.123.215, 911.502.123.280, 911.502.123.281, 911.502.123.340, 911.502.123.380, 911.502.123.390, 911.502.123.395, 911.502.123.500, 911.502.123.900 |
| Bosch WSAC | F 042 S02 135, F 042 S02 153, STR-2411, STR-2461 |
| CASCO | CST10682, CST10682AS, CST10682GS |
| CEVAM | 8507 |
| DELCO REMY | 19084018, 19084253, DRT1480, SER84253-12B1 |
| DRI | 332010124 |
| ELSTOCK | 45-3443 |
| ERA | 220993, 221021 |
| EUROTEC | 11021480 |
| FARCOM | 106359 |
| FEBI BILSTEIN | 180664, 48990 |
| FRIESEN | 8821480 |
| HC-Cargo | 113891, 115509, F 032 113 891 |
| HELLA | 012 586-101, 012586101, 8EA 738 258-731 |
| LETRIKA | IS 9457, IS 9485 |
| LUCAS ELECTRICAL | LRS02272 |
| MAGNETI MARELLI | 63522610260 |
| MAHLE | 11139177, 11139605, 72442833, 72483386, AZF4876, AZF4896, MS 758, MS 890 |
| MEAT & DORIA | 5110083, 5110083G |
| MITSUBISHI | M009T65971, M9T65971 |
| MONARK | 081 100 001 |
| PowerMax | 8213049, 88213049 |
| SCANIA | 1 447 911, 1 796 026, 2 031 368, 2 148 650, 2 276 131, 2 708 317, 571 467, 573507, 579261, 579271 |
| SEG | 0001261105, 0001261106-R, 0001261165 |
| VALEO | 203047, 438284, 458940 |
| WAI | 19795N, 19802N |
