Hella

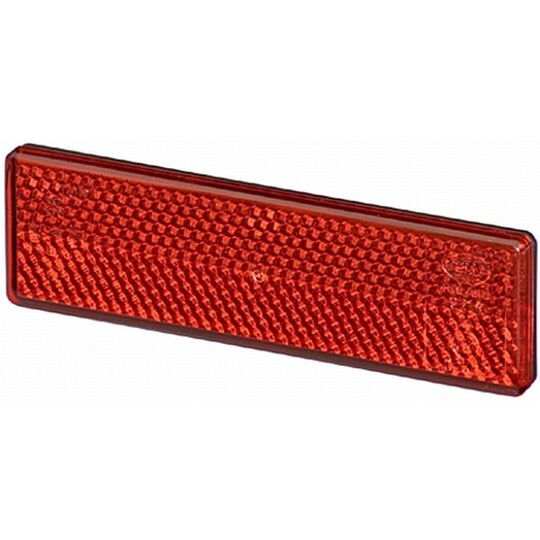

8RA342 014-157 Reflex Reflector
SKU / part number
Hella 8RA342 014-157 Reflex Reflector. Part no. 8RA342-014-157. Check specifications, vehicle fitment and references below.
Specifications
Height
6 | mm
Length
92 | mm
Thickness
6 | mm
Width
27 | mm
Mounting Type
Glued
Mounting Type
mounting
Fastening Type
for vertical fastening
Fastening Type
for horizontal fastening
Fitting Position
Rear
Light Function
with reflector
Number of light functions
1
fulfils ECE standard
R3
Registration Type
SAE approved
Effective reflective surface
21 cm²
Shape
rectangular
Lens Colour
Red
Housing Type
Synthetic Material Housing
Supplementary Article/Supplementary Info 2
with fastening material
Quantity
210
Registration Type
ECE approved
Trade Numbers
E17 402
Shipping details
Weight
0.012 Kg
Weight Volumetric
0.06 Kg
Customs Code
851220
Country of Origin
Finland
Cross-Reference Numbers
| AGCO | F131 904 021 022 |
|---|---|
| BUCHER | 15064043-0 |
| FENDT | F 131 904 021 022 |
| GENERAL MOTORS | 94734879 |
| HELLA | 342 014-157, 342014157, E17 2402, E17 402 |
| HEULIEZ | C101926034 |
| HYMER | 1437795 |
| HÜFFERMANN | 2-EL0004-105 |
| KNAUS | R01010089 |
| KÄSSBOHRER | 8-689-051-020 |
| LAMBORGHINI | 47F.945.105 |
| LAND ROVER | 28XFF100071, XFF 1000070, XFF100071 |
| LINDNER | 3010123 |
| RENAULT | 265206543R |
| SCANIA | SP1068199 |
| STILL | 0009940116 |
| TRIUMPH | 2701078, 2702078 |
