Hella

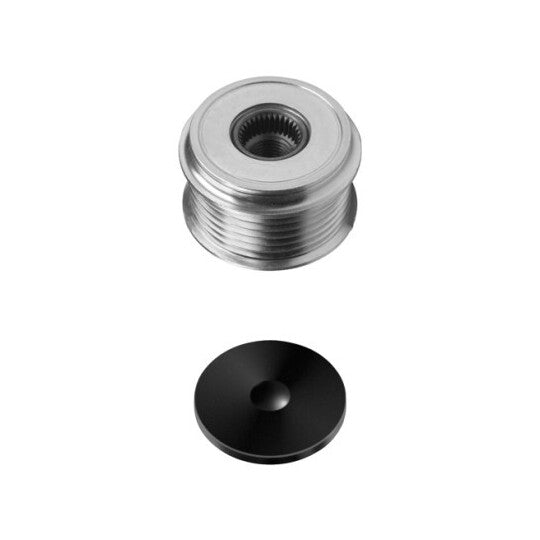

9XU 358 038-001 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-001 Alternator Freewheel Clutch. Part no. 9XU-358-038-001. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
61 | mm
Width
39.5 | mm
Distance from belt pulley to alternator
9 mm
Fitting Depth
16 mm
for manufacturer number
F-233593.XX
Manufacturer Restriction
Valeo
Thread Size
M16x1,5
Belt Pulley Ø
56 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.501 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BREDA LORETT | CR 3807 |
|---|---|
| CONTINENTAL CTAM | AP9006 |
| DAYCO | ALP2367 |
| FEBI BILSTEIN | 31405 |
| GATES | OAP7042 |
| GEBE | 335581 |
| GENERAL MOTORS | 93297735 |
| HELLA | 358 038-001, 358038001 |
| LUCAS ELECTRICAL | LOPA0055 |
| Litens | 222562 |
| RUVILLE | 56329 |
| SEAT | 03D 903 119 A |
| SKF | VKM 03111 |
| SKODA | 03D 903 119 A |
| SNR | GA754.16 |
| Schaeffler INA | 535 0060 10, F-233593, F-233593.03, F-233593.04, F-233593.05, F-233593.1, F-233593.2 |
| TRIPLE FIVE | 234569, 335580 |
| VALEO | 2220306, 2548207, 493822, 583516, 588013, 6Y3725552, SG8B023, SG8B026, SG9B048, SG9B057 |
| VW | 03D 903 119 A |
