Hella

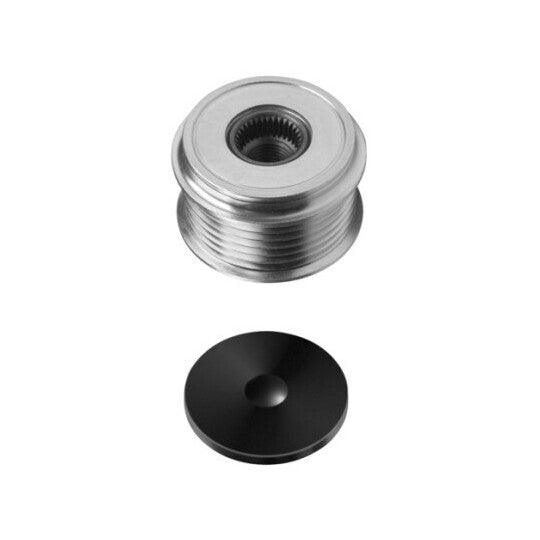

9XU 358 038-011 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-011 Alternator Freewheel Clutch. Part no. 9XU-358-038-011. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
61 | mm
Width
36.5 | mm
Distance from belt pulley to alternator
6 mm
Fitting Depth
7.6 mm
for manufacturer number
F-225643.XX
for manufacturer number
F-552117.XX
Manufacturer Restriction
Delphi Korea
Manufacturer Restriction
Bosch
Thread Size
M16x1,5
Belt Pulley Ø
56 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.474 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BOSCH | 0 123 320 047, 0 123 320 062, 0 123 510 044, 0 123 510 058, 0 123 510 075, 0 123 510 102, 0 123 520 008, 0 123 520 010, 1 126 601 549, 1 126 601 572, F 00M 991 392 |
|---|---|
| BREDA LORETT | CR 3806 |
| CHEVROLET | 96 627 029, 96 866 018 |
| CONTINENTAL CTAM | AP9060 |
| DAEWOO | 211242, 96627029, 96866018 |
| DAYCO | ALP2326 |
| FEBI BILSTEIN | 14043 |
| GATES | OAP7100 |
| GEBE | 335871 |
| HELLA | 358 038-011, 358038011 |
| HOLDEN | 48 05 492, 93743440 |
| HUTCHINSON | DB0283 |
| LUCAS ELECTRICAL | LOPA0005 |
| MERCEDES-BENZ | 604 150 01 60, 604 150 05 60, A 604 150 01 60, A 604 150 05 60 |
| OPEL | 48 05 450, 48 05 492, 48 11 550, 48 14 335, 48 17 806, 93743440 |
| QUINTON HAZELL | 1010053 |
| RUVILLE | 55188 |
| SKF | VKM 03824 |
| SNR | GA751.01 |
| SSANGYONG | 662 155 31 15 |
| SWAG | 10 14 0006 |
| Schaeffler INA | 535 0077 10, 79202026, F-225643.1, F-225643.10, F-225643.11, F-225643.12, F-225643.13, F-225643.14, F-225643.15, F-225643.4, F-225643.5, F-225643.6, F-225643.7, F-225643.8, F-225643.9, F-552117.01 |
| TRIPLE FIVE | 138807, 332291, 335190, 335870 |
| VALEO | 2655139, 588068 |
| VAUXHALL | 48 05 492, 93743440 |
