Hella

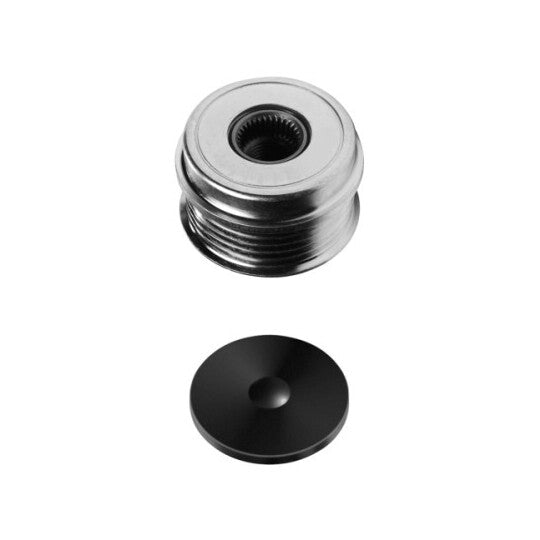

9XU 358 038-121 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-121 Alternator Freewheel Clutch. Part no. 9XU-358-038-121. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
61 | mm
Width
36.5 | mm
Distance from belt pulley to alternator
8 mm
Fitting Depth
11.1 mm
for manufacturer number
F-230846.XX
Manufacturer Restriction
Bosch
Thread Size
M16x1,5
Belt Pulley Ø
56 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.511 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| AUDI | 038 903 119 L |
|---|---|
| BOSCH | 0 124 325 020, 0 124 515 024, 0 986 044 540, F 00M 147 723, F 00M 991 044, F 00M 991 377 |
| DAYCO | ALP2336, ALP2342 |
| FEBI BILSTEIN | 15274 |
| FIAT | 504009978, 71723401, 994 9580 |
| GATES | OAP7061 |
| GEBE | 335271 |
| HELLA | 358 038-121, 358038121 |
| HK | G227 |
| IPD | 12-0227 |
| LUCAS ELECTRICAL | LOPA0015 |
| QUINTON HAZELL | 1010038 |
| RUVILLE | 55720 |
| SKF | VKM 03108 |
| SWAG | 30 14 0005 |
| Schaeffler INA | 535 0022 10, 79202041, F-230846, F-230846.1, F-230846.2, F-230846.3, F-230846.4, F-230846.5 |
| TRIPLE FIVE | 230312, 335380, MBI-28740, PBT8649, TA20501, Y2039 |
| VALEO | 588059 |
| VW | 038 903 119 L |
