Hella

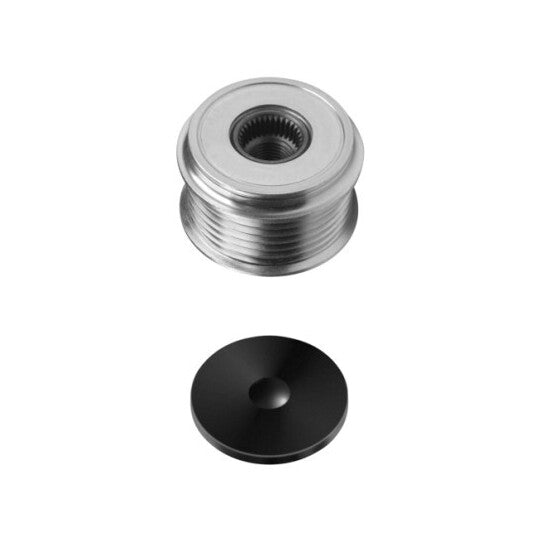

9XU 358 038-131 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-131 Alternator Freewheel Clutch. Part no. 9XU-358-038-131. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
61 | mm
Width
41.8 | mm
Distance from belt pulley to alternator
11 mm
Fitting Depth
16 mm
for manufacturer number
F-556599.XX
for manufacturer number
F-228881.XX
Manufacturer Restriction
Valeo
Thread Size
M16x1,5
Belt Pulley Ø
56 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.481 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BREDA LORETT | CR 3521 |
|---|---|
| CONTINENTAL CTAM | AP9052 |
| DAYCO | ALP2345 |
| FEBI BILSTEIN | 24179 |
| GATES | OAP7043 |
| GEBE | 335461 |
| HELLA | 358 038-131, 358038131 |
| HK | G885Z |
| HUTCHINSON | DB0256 |
| IPD | 12-0885 |
| LUCAS ELECTRICAL | LOPA0027 |
| QUINTON HAZELL | 1010095 |
| RENAULT | 7701055871, 7701207807, 7701477502, 8200112065, 8200159642 |
| RUVILLE | 55594 |
| SKF | VKM 03600 |
| SNR | GA755.01 |
| Schaeffler INA | 535 0028 10, 79083409, F-228881.2, F-228881.3, F-556599.01 |
| TRIPLE FIVE | 03.80401, 230522, 332300, 335460, MBI-28590, PBT8637, RKT2117, Y2018 |
| VALEO | 2546952, 2604093, 588010, 593517, A13VI157, A13VI209, A13VI289, A13VI297, SG10B019, SG10B032, SG10B064, SG12B055, SG12B096 |
| VOLVO | 3 125 107 1, 8 251 635, 8 251 637, 8 251 638, 8 251 640, 8 251 641, 8 251 644, 8 251 645, 8 251 646, 8 251 647, 8 251 648, 8 602 185, 8 602 806, 8 641 982 |
