Hella

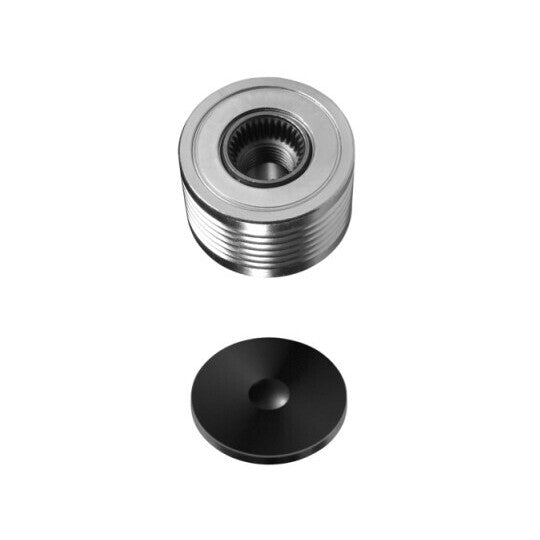

9XU 358 038-211 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-211 Alternator Freewheel Clutch. Part no. 9XU-358-038-211. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
54 | mm
Width
37.4 | mm
Distance from belt pulley to alternator
11 mm
Fitting Depth
16 mm
for manufacturer number
F-556602.XX
for manufacturer number
F-229643.XX
for manufacturer number
F-560843.XX
Manufacturer Restriction
Valeo
Manufacturer Restriction
Bosch
Thread Size
M16x1,5
Belt Pulley Ø
49 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.362 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BOSCH | 0 122 0AA 0B0, 0 122 0AA 2A0, 0 122 1AA 4Z0, 0 122 1AA 5L0, 0 122 1AA 7V0, F 00M 991 396 |
|---|---|
| BREDA LORETT | CR 3089, CR 3509 |
| CARGOPARTS | D762D799 |
| CONTINENTAL CTAM | AP9024, AP9039 |
| DAYCO | ALP2338, ALP2346 |
| DELPHI | 10451570, 10453582 |
| FEBI BILSTEIN | 15155, 33133 |
| GATES | OAP7049, OAP7081 |
| GEBE | 335311, 335331, 353071 |
| HELLA | 358 038-211, 358038211 |
| HK | G542, G884Z |
| HUTCHINSON | DB0253, DB0257 |
| IPD | 12-0542, 12-0884 |
| LUCAS ELECTRICAL | LOPA0016, LOPA0029 |
| MERCEDES-BENZ | 611 150 03 60, 611 150 16 50, 611 155 00 15, 611 155 04 15, A 611 150 03 60, A 611 150 16 50, A 611 155 00 15, A 611 155 04 15 |
| MITSUBISHI | S30638577 |
| NISSAN | 23100-00Q0A, 23100-00Q1F, 23100-00QA7, 23100-00QAM, 23100-00QAP, 23100-00QBE, 23151-00Q0B |
| OPEL | 44 03 540, 44 11 314, 44 11 316, 44 11 318, 44 16 872, 44 17 574, 44 30 591, 44 30 595, 91 11 540, 93190868 |
| QUINTON HAZELL | 1010081, 1010083 |
| RENAULT | 23 10 000 18R, 23 10 001 86R, 23 10 005 43R, 7700426849, 7701477508, 7711134316, 8200162474, 8200538407, 8200584040, 8200690199 |
| RUVILLE | 55142, 55593 |
| SKF | VKM 03603, VKM 03814 |
| SNR | GA751.04, GA755.04 |
| SWAG | 10 14 0007 |
| Schaeffler INA | 535 0016 10, 535 0030 10, 79083442, 79083462, 79202047, F-229363.09, F-229363.5, F-229363.6, F-229363.7, F-229363.9, F-229643.10, F-229643.11, F-229643.3, F-229643.4, F-229643.7, F-229643.8, F-229643.9, F-556602, F-556602.01, F-559585, F-559585.01, F-560843, F-560843.01 |
| TRIPLE FIVE | 03.80354, 03.80402, 230307, 230524, 3.3533.0, 332296, 332301, 335310, MBI-28610, MBI-28630, PBT8579, PBT8638, PBT8666, RKT2070, RKT2118, TA28501, Y2014, Y2019 |
| VALEO | 2542272E, 2547655, 2600001, 588029, 588030, 593554, SG12B017, SG12B071, SG12B096, SG12B110, SG12B123, TG15C123, TG15C128, TG15C153 |
| VAUXHALL | 44 17 574, 93190868 |
| VOLVO | 3 125 107 4, 3 602 231, 8 251 635, 8 251 641, 8 251 644, 8 251 647, 8 251 648, 8 251 725, 8 602 806, 8 666 126 |
| VW | 254 981 5, 260 334 1, 260 433 2, 595 203 |
