Hella

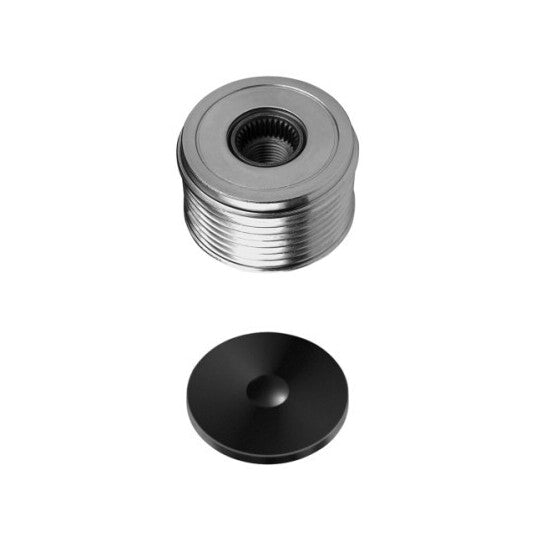

9XU 358 038-281 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-281 Alternator Freewheel Clutch. Part no. 9XU-358-038-281. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
64 | mm
Width
40.5 | mm
Distance from belt pulley to alternator
7 mm
Fitting Depth
11.1 mm
for manufacturer number
F-228751.XX
Manufacturer Restriction
Bosch
Manufacturer Restriction
Hitachi
Thread Size
M16x1,5
Belt Pulley Ø
59 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
7
Shipping details
Weight
0.545 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BOSCH | 0 125 811 059, 0 125 811 060, F 00M 591 130, F 00M 599 806 |
|---|---|
| BREDA LORETT | CR 3608 |
| CARGOPARTS | 235021 |
| DAYCO | ALP2356 |
| GATES | OAP7094 |
| GEBE | 335281 |
| HELLA | 358 038-281, 358038281 |
| HITACHI | GD215541, GD215541-1, GD215554-1, LR 1130-702, LR 1130-702C, LR 190-752 |
| HK | G1051 |
| LUCAS ELECTRICAL | LOPA0026 |
| NISSAN | 23100-2W201, 23100-DB00A, 23100-DB00B, 23100-VC100, 23100-VC101, 23100-VC10A, 23100-VC10B, 23100-VC201, 23150-2W200, 23150-2W20A, 23150-2W20B |
| OPEL | 44 06 495, 44 19 036, 44 19 088 |
| QUINTON HAZELL | 1010080 |
| RENAULT | 23 10 0DB 00B, 50 10 553 879 |
| RUVILLE | 56824 |
| SKF | VKM 03609 |
| SNR | GA768.01 |
| Schaeffler INA | 535 0053 10, 79044017, F-228751.05, F-228751.06, F-228751.07, F-228751.2, F-228751.3, F-228751.4 |
| TRIPLE FIVE | 230521, 332299, 335280, MBI-28570, PBT8635, Y2021 |
| VALEO | 588079 |
