Hella

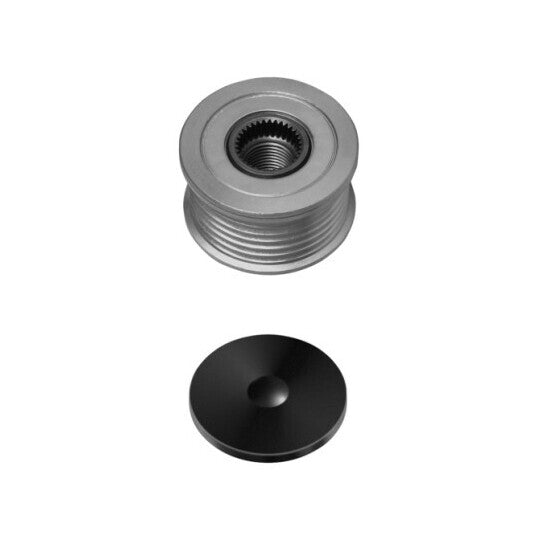

9XU 358 038-461 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-461 Alternator Freewheel Clutch. Part no. 9XU-358-038-461. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
54 | mm
Width
36.2 | mm
Distance from belt pulley to alternator
11 mm
Fitting Depth
11.1 mm
for manufacturer number
F-235968.XX
Manufacturer Restriction
Bosch
Thread Size
M16x1,5
Belt Pulley Ø
50 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.379 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BOSCH | 0 121 715 029, 0 124 625 002, 0 124 625 014, 0 124 625 019, 0 124 625 033, 0 124 625 045, 0 986 045 420, F 00M 349 827, F 00M 991 181, F 00M 991 255 |
|---|---|
| BREDA LORETT | CR 3663 |
| CONTINENTAL CTAM | AP9027 |
| DAYCO | ALP2379 |
| FEBI BILSTEIN | 31385 |
| GATES | OAP7046 |
| GEBE | 353141 |
| HELLA | 358 038-461, 358038461 |
| HUTCHINSON | DB0276 |
| LUCAS ELECTRICAL | LOPA0072 |
| MERCEDES-BENZ | 646 150 02 60, 646 150 03 60, 648 155 00 15, A 646 150 02 60, A 646 150 03 60, A 648 155 00 15 |
| RUVILLE | 55177 |
| SKF | VKM 03820 |
| SNR | GA751.11 |
| Schaeffler INA | 535 0086 10, 79202128, F-235968, F-235968.01, F-235968.03, F-235968.05, F-235968.06, F-235968.07, F-235968.08, F-235968.09, F-235968.10 |
| TRIPLE FIVE | 234796, 332308, 353140 |
| VALEO | 588019 |
