Hella

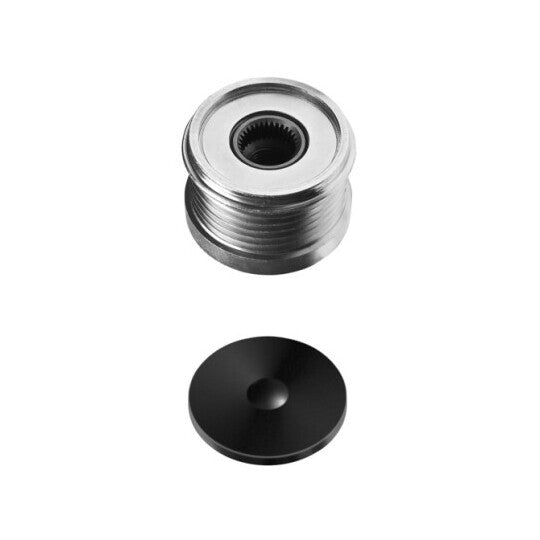

9XU 358 038-541 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-541 Alternator Freewheel Clutch. Part no. 9XU-358-038-541. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
59 | mm
Width
43.6 | mm
Distance from belt pulley to alternator
17 mm
Fitting Depth
11.8 mm
for manufacturer number
F-565229.XX
for manufacturer number
F-568861.XX
Manufacturer Restriction
Denso
Thread Size
M14x1,5
Belt Pulley Ø
55 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.518 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BREDA LORETT | CR 4059 |
|---|---|
| CONTINENTAL CTAM | AP9029 |
| DENSO | 021040-2020, 021040-2480, 104210-3511, 104210-3512 |
| FIAT | 51808561, 51907673, 51943777 |
| FORD | 1229258, 1477737, 3M5T-10300-PB, 3M5T-10300-PC, 3M5T-10300-PD, 3M5T-10300-YC, 3M5T-10300-YD, 3M5T-10300-YE |
| GATES | OAP7112 |
| GEBE | 353961 |
| HELLA | 358 038-541, 358038541 |
| Koyo | DCA1834IR |
| LUCAS ELECTRICAL | LOPA0138 |
| MAZDA | Y60118300 |
| OPEL | 12 02 273 |
| RUVILLE | 59927 |
| SKF | VKM 03400 |
| SNR | GA752.05 |
| Schaeffler INA | 535 0181 10, 79909086, F-565229, F-565229.01, F-565229.02, F-568861, F-568861.01, F-568861.02 |
| TRIPLE FIVE | 237610, 3 5425 1, 332315, 353960 |
| VALEO | 588011, A634825A |
| VOLVO | 3 066 706 7, 3 066 706 8, 3 079 542 2, 3 079 542 3, 3 600 059 8, 3 600 059 9, 3 605 099 7, 8 666 579 |
