Hella

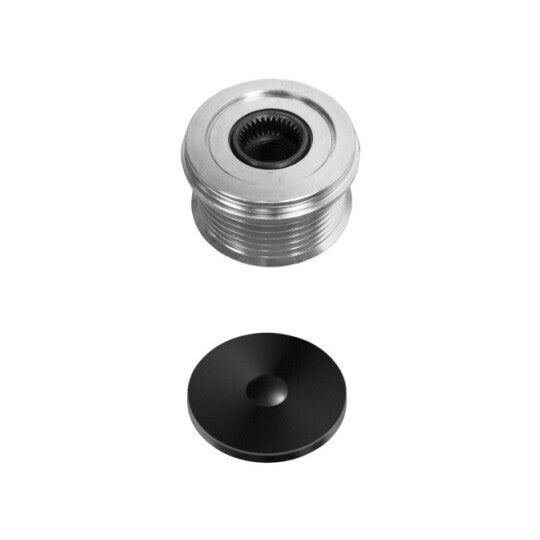

9XU 358 038-621 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-621 Alternator Freewheel Clutch. Part no. 9XU-358-038-621. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
58 | mm
Width
33.7 | mm
Distance from belt pulley to alternator
5 mm
Fitting Depth
11.3 mm
for manufacturer number
F-583944.XX
for manufacturer number
F-233525.XX
Manufacturer Restriction
Bosch
Thread Size
M16x1,5
Belt Pulley Ø
53 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.401 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| AUTEX | 654314 |
|---|---|
| BOSCH | 0 124 515 001, 0 124 515 015, 0 124 515 042, 0 124 515 073, 0 124 525 056, 0 124 525 057, 0 124 525 107, 0 399 660 094, 0 986 043 690, 0 986 046 520, 0 986 047 140, 0 986 048 090, F 00M 147 735, F 00M 591 561, F 00M 991 105, F 00M 991 305 |
| BREDA LORETT | CR 3614 |
| DAYCO | ALP2415 |
| FEBI BILSTEIN | 34605 |
| GEBE | 335451 |
| HELLA | 358 038-621, 358038621 |
| PORSCHE | 916.603.012.00, 996.603.012.00, 996.603.012.01, 996.603.012.02, 996.603.012.03, 996.603.012.04, 996.603.012.05, 996.603.012.09, 996.603.152.50, 997.603.002.03, 997.603.012.01, 997.603.012.03, 997.603.012.05, 997.603.012.07, 997.603.022.00, 997.603.022.01, 997.603.022.03, 997.603.022.05, 997.603.022.EX, 997.603.154.00 |
| QUINTON HAZELL | 1010094 |
| RUVILLE | 56717 |
| SKF | VKM 03850 |
| Schaeffler INA | 535 0025 10, 79202018, F-233525, F-233525.02, F-233525.04, F-233525.05, F-233525.1, F-583944 |
| TRIPLE FIVE | 230315, 335450, MBI-28830, PBT8655, Y2040 |
| VALEO | 588074 |
