Hella

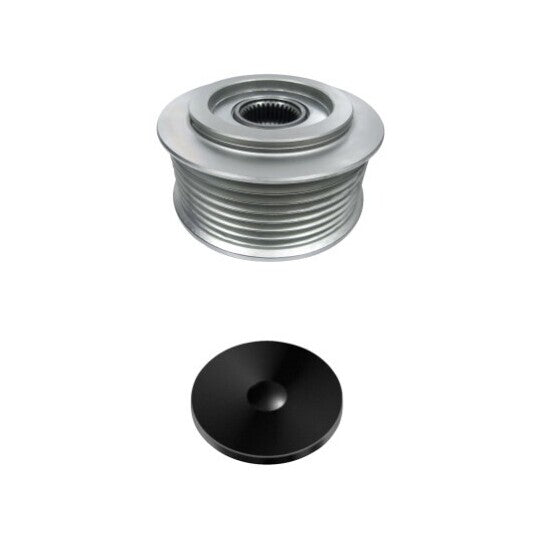

9XU 358 038-941 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-941 Alternator Freewheel Clutch. Part no. 9XU-358-038-941. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
75 | mm
Width
39.9 | mm
Distance from belt pulley to alternator
9 mm
Fitting Depth
12.3 mm
for manufacturer number
F-580303.XX
Manufacturer Restriction
Denso
Thread Size
M14x1,5
Belt Pulley Ø
70 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
7
Shipping details
Weight
0.85 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BREDA LORETT | CR 5328 |
|---|---|
| DAYCO | ALP2406 |
| GATES | OAP7119 |
| GEBE | 354491 |
| HELLA | 358 038-941, 358038941 |
| HONDA | 31 100 RBD E02, 31 100 RSR E01, 31 141-RBD-E02 |
| NSK-RHP | 81014 |
| RUVILLE | 59977 |
| SNR | GA774.00 |
| Schaeffler INA | 535 0214 10, 79909103, F-580303 |
| TRIPLE FIVE | 3 5449 0, 330634 |
