Hella

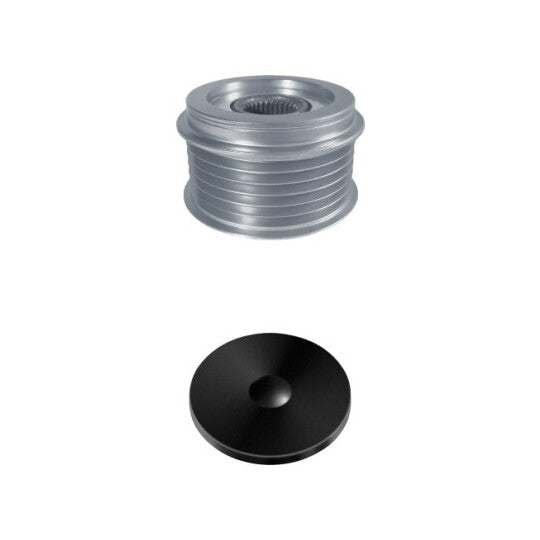

9XU 358 038-971 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-971 Alternator Freewheel Clutch. Part no. 9XU-358-038-971. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
61 | mm
Width
34.8 | mm
Distance from belt pulley to alternator
5 mm
Fitting Depth
11.3 mm
for manufacturer number
F-551623.XX
Manufacturer Restriction
Bosch
Manufacturer Restriction
Valeo
Manufacturer Restriction
Hitachi
Thread Size
M16x1,5
Belt Pulley Ø
56 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.481 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| AUDI | 059 903 119 G, 059 903 119 H, 059 903 119 L, 06E 903 119 |
|---|---|
| BOSCH | 0 121 715 076, 0 121 715 080, 0 121 715 176, 0 121 715 180, 0 124 525 116, 0 124 525 228, 0 124 525 531, 0 124 525 548, 0 125 711 035, 0 125 711 082, 0 125 711 089, 0 125 711 125, 0 125 711 126, F 00M 349 911, F 00M 591 145, F 00M 991 264 |
| BREDA LORETT | CR 4044 |
| FEBI BILSTEIN | 37982 |
| GEBE | 354671 |
| HELLA | 358 038-971, 358038971 |
| HITACHI | GD115071, LR 1180-856, LR 1180-857, LR 1190-916, LR 1190-940 |
| RUVILLE | 56378 |
| Schaeffler INA | 535 0222 10, 79202247, F-551623, F-551623.01, F-551623.02, F-551623.03, F-551623.04, F-551623.06 |
| TRIPLE FIVE | 354670 |
| VALEO | 2604159, 2612688, 2626090, FG20S011, FG20S018, FG23S035, FG23S061, TG12SA28, TG15C177, TG15C190 |
| VW | 059 903 119 G, 059 903 119 H, 059 903 119 L, 06E 903 119 |
