Hella

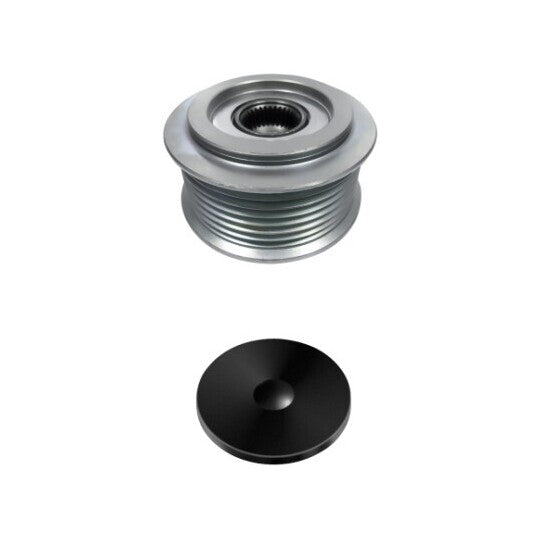

9XU 358 038-981 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-981 Alternator Freewheel Clutch. Part no. 9XU-358-038-981. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
70 | mm
Width
39.9 | mm
Distance from belt pulley to alternator
9 mm
Fitting Depth
12.3 mm
for manufacturer number
F-563515.XX
Manufacturer Restriction
Denso
Thread Size
M14x1,5
Belt Pulley Ø
65 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
7
Shipping details
Weight
0.725 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BREDA LORETT | CR 5318 |
|---|---|
| DAYCO | ALP2444 |
| FEBI BILSTEIN | 34277 |
| GATES | OAP7184 |
| GEBE | 354701 |
| HELLA | 358 038-981, 358038981 |
| HONDA | 31 100 R3L G01, 31 100 RFW G01, 31 100 RFW G51, 31 100 RL0 G01, 31 100 RL0 G51, 31 100 RSX G01, 31 100 RZ0 G01, 31 141-RL0-G01 |
| NSK-RHP | 4DFB503238 |
| RUVILLE | 57441 |
| Schaeffler INA | 535 0229 10, F-563515 |
| TRIPLE FIVE | 3 5470 0 |
