Hella

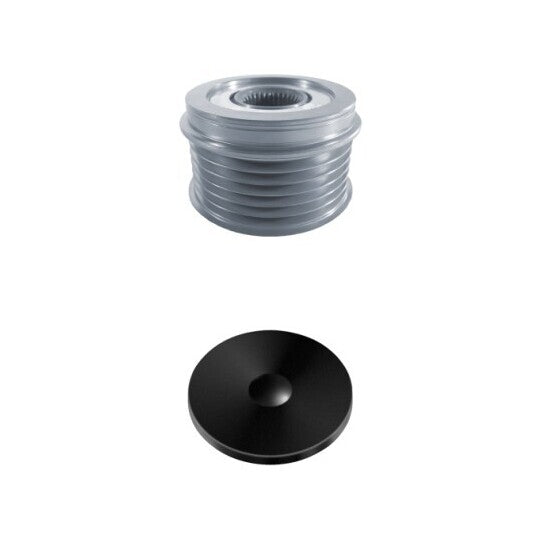

9XU 358 039-011 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 039-011 Alternator Freewheel Clutch. Part no. 9XU-358-039-011. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
59 | mm
Width
38 | mm
Distance from belt pulley to alternator
8 mm
Fitting Depth
14.5 mm
for manufacturer number
F-559894.XX
Manufacturer Restriction
Valeo
Thread Size
M16x1,5
Belt Pulley Ø
55 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.482 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BREDA LORETT | CR 3837 |
|---|---|
| DAYCO | ALP2449 |
| FIAT | 504280012, 5801526032, 77364797 |
| GATES | OAP7130 |
| GEBE | 354561 |
| HELLA | 358 039-011, 358039011 |
| IVECO | 51787165 |
| PEUGEOT | 5705.KP |
| RUVILLE | 56030 |
| SKF | VKM 03210 |
| SNR | GA758.07 |
| Schaeffler INA | 535 0176 10, 79010001, F-559894 |
| TRIPLE FIVE | 3 5456 0, 333070 |
| VALEO | 2604651, 439630, 440197, FG18S022, FG18S108 |
