Hella

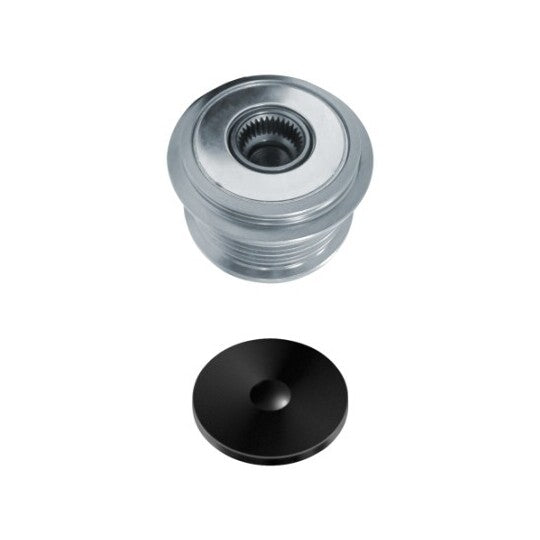

9XU 358 039-041 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 039-041 Alternator Freewheel Clutch. Part no. 9XU-358-039-041. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
64 | mm
Width
42.4 | mm
Distance from belt pulley to alternator
11 mm
Fitting Depth
12.2 mm
for manufacturer number
F-585322.XX
Manufacturer Restriction
Denso
Thread Size
M14x1,5
Belt Pulley Ø
58 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
7
Shipping details
Weight
0.569 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BREDA LORETT | CR 5559 |
|---|---|
| GATES | OAP7183 |
| HELLA | 358 039-041, 358039041 |
| NTN | 328V2-2, 357V1-1, 361V1-1 |
| RUVILLE | 56991 |
| SNR | GA769.03 |
| Schaeffler INA | 535 0232 10, F-585322 |
| TOYOTA | 27060-0G011, 27060-0G021, 27060-0R011, 27060-0R040, 27060-0R050, 27060-0R060, 27060-0R070, 27060-0R080, 27060-0R090, 27060-30030, 27060-30040, 27060-30050, 27060-30060, 27060-30070, 27060-30120, 27060-30121, 27060-30123, 27060-30130, 27060-30140, 27060-30150, 27060-30151, 27060-30152, 27060-30154, 27060-30160, 2706026030, 2706026051, 2706026060, 2706026070, 27415-26010, 27415-30010, 27415-30011 |
| TRIPLE FIVE | 330527 |
