Hella

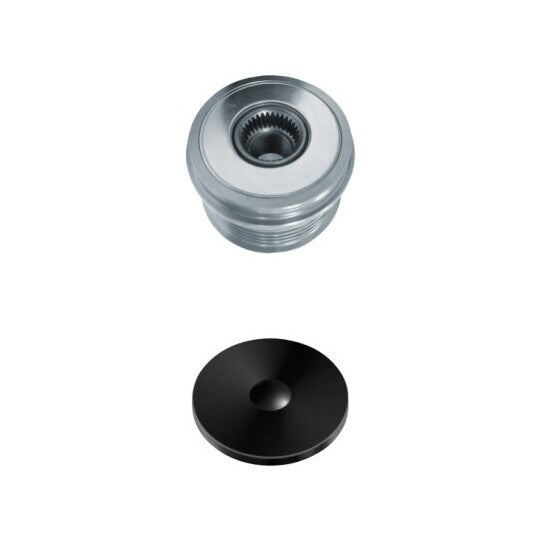

9XU 358 039-101 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 039-101 Alternator Freewheel Clutch. Part no. 9XU-358-039-101. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
59 | mm
Width
41.3 | mm
Distance from belt pulley to alternator
10 mm
Fitting Depth
14 mm
for manufacturer number
F-239807.XX
for manufacturer number
F-570802.XX
for manufacturer number
F-563248.01/.02
Manufacturer Restriction
Delphi Korea
Manufacturer Restriction
Valeo
Thread Size
M16x1,5
Belt Pulley Ø
54 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.481 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BMW | 12 31 7 802 261, 12 31 7 802 619, 12 31 7 805 432, 12 31 7 808 073, 12 31 7 823 343, 12 31 7 823 344, 12 31 7 823 345, 12 31 7 823 347, 12 31 8 507 623, 12 31 8 507 624, 12 31 8 507 625, 12 31 8 509 022, 12 31 8 509 023, 12 31 8 509 024, 12 31 8 578 608, 12 31 8 578 609, 12 31 8 579 419, 12 31 8 579 420, 7 802 261, 7 802 619, 7 805 432, 7 808 073, 7 823 343, 7 823 344, 7 823 345, 7 823 347, 8 507 623, 8 507 624, 8 507 625, 8 509 022, 8 509 023, 8 509 024, 8 578 608, 8 578 609, 8 579 419, 8 579 420 |
|---|---|
| BREDA LORETT | CR 4076 |
| CHEVROLET | 13 258 483, 13 588 289 |
| CHEVROLET (SGM) | 13258483 |
| DAEWOO | 13588289 |
| DAYCO | ALP2416 |
| FEBI BILSTEIN | 34599 |
| GATES | OAP7135 |
| HELLA | 358 039-101, 358039101 |
| OPEL | 12 02 119, 12 02 187, 12 02 188, 12 02 189, 12 02 191, 12 02 215, 12 02 219, 12 02 309, 12 02 310, 12 02 317, 12 02 318, 12 02 342, 12 04 177, 12 04 621, 12 04 622, 12 04 623, 12 04 642, 13258483 |
| RUVILLE | 59965 |
| SAAB | 13 50 258 1, 13 50 258 2 |
| SKF | VKM 03511 |
| SNR | GA753.10 |
| SWAG | 40 93 4599 |
| Schaeffler INA | 535 0203 10, F-239807, F-563248, F-563248.01, F-563248.02, F-570802, F-570802.01, F-570802.02 |
| TRIPLE FIVE | 3 5458 0, 333076 |
| VALEO | 4605956, 588028, FG12S031, FG18D057, FG18D111, FG18S019, FG18S045, FG18S052, FG18S141, FG23S032, FG23S033, TG12C036, TG12C052, TG12C069, TG12C070, TG12C103, TG12C105, TG13S011, TG13S019, TG13S027 |
| VAUXHALL | 12 04 177, 13258483 |
