Ina
535 0229 10 Alternator Freewheel Clutch
SKU / part number

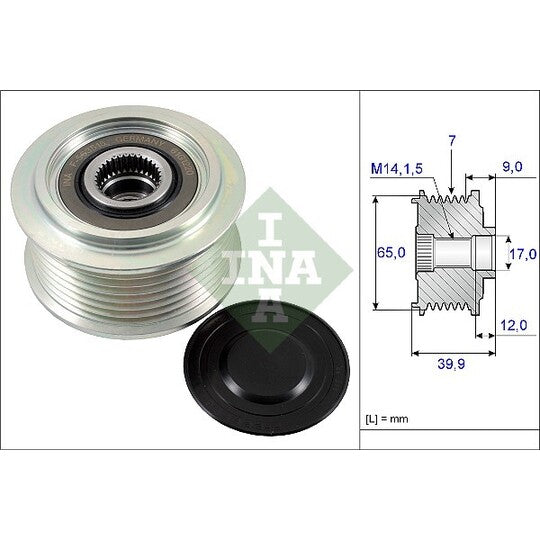

Ina 535 0229 10 Alternator Freewheel Clutch. Part no. 535-0229-10. Check specifications, vehicle fitment and references below.
Specifications
Diameter 1/Diameter 2
65,0/17,0 | mm
Width
39.9 | mm
for manufacturer number
F-563515.XX
Number of grooves
7
Distance to first groove
9 mm
Supplementary Article/Supplementary Info 2
Requires special tools for mounting
Shipping details
Weight
0.74 Kg
Customs Code
851190
Country of Origin
Germany
Cross-Reference Numbers
| AS-PL | AFP6039 |
|---|---|
| BREDA LORETT | CR 5318, CR5318 |
| CONTINENTAL CTAM | AP9086 |
| DAYCO | ALP2444 |
| DENSO | 104210-1140, 104210-1150, 1042101140, 1042101150, 104211-8040, 1042118040 |
| FEBI BILSTEIN | 34277 |
| GATES | 7789-10184, 778910184, OAP7184 |
| HONDA | 31100-59N-G01, 31100-R3L-G01, 31100-RFW-G01, 31100-RFW-G51, 31100-RL0-G01, 31100-RL0-G51, 31100-RSX-G01, 31100-RZ0-G01, 3110059NG01, 31100R3LG01, 31100RFWG01, 31100RFWG51, 31100RL0G01, 31100RL0G51, 31100RSXG01, 31100RZ0G01, 31141-RL0-G01, 31141RL0G01 |
| IPD | 15-3789, 153789 |
| NSK-RHP | 4DFB503238 |
| RUVILLE | 57441 |
| SCHAEFFLER GRUPPE | 535 0229 10, 535022910 |
| SKF | VKM 06300, VKM06300 |
| Schaeffler INA | F-563515, F563515 |
| TRIPLE FIVE | 3 5470 0, 3 5470 1, 354700, 354701 |
| ZEN SA | 5598 |
