Lucas

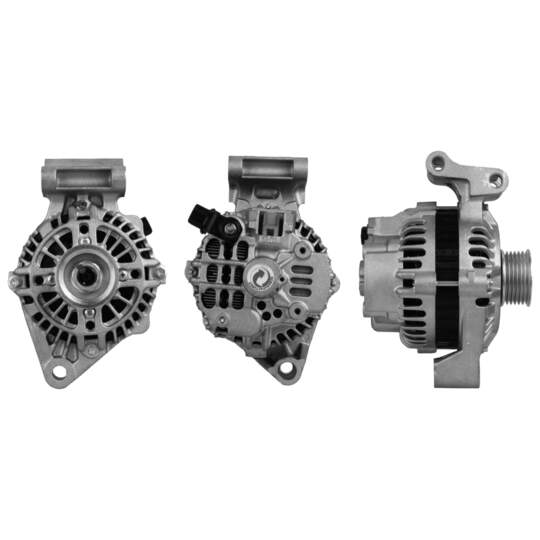

LRA01169 Alternator
SKU / part number
Lucas LRA01169 Alternator. Part no. LRA01169. Check specifications, vehicle fitment and references below.
Specifications
Alternator Charging Current
90 A
Vehicle Main Current
for vehicles with 12V main current
Voltage
14 V
Pulleys
with multi-belt pulley
Belt Pulley Ø
49 mm
Number of ribs
6
Clamp
M6 B+
Clamp
A-RC-LI
Plug Type ID
0174
Bore Diameter 1
11 mm
Net weight
4.6 kg
Shipping details
Weight
4.952 Kg
Customs Code
851150
Country of Origin
Denmark
Cross-Reference Numbers
| AS-PL | A5029, A5029PR |
|---|---|
| ATL Autotechnik | L82430 |
| AUTOELECTRO | AEC1780 |
| BOSCH | 0986049121, 1986A01258 |
| BV PSH | 595.588.090.130, 595.588.090.265, 595.588.090.370, 595.588.090.395 |
| CEVAM | 4712 |
| DELCO REMY | DRA4246 |
| DENSO | 63377592010 |
| DRI | 219165902 |
| ELSTOCK | 27-4813 |
| EUROTEC | 12049120, 12090030 |
| FORD | 1592234, 2S6T-10300-DB, 2S6T-10300-DD, 2S6T-10300-DE, 2S6U-10300-GB |
| FRIESEN | 9090252 |
| HELLA | 8EL 012, 429-821, 8EL738190-001 |
| HOLGER CRISTIANSEN | CA1780IR |
| LUCAS ELECTRICAL | LRA1169 |
| MAGNETI MARELLI | 063377592010, 944390902520, MQA1780 |
| MAZDA | C401-18-300 |
| MITSUBISHI | A005TA7792, A5TA7792 |
| NK | 4825013 |
| PowerMax | 89213141, 9213141 |
| QUINTON HAZELL | FRA431, QRA2643 |
| QX COMPONENTS | QA4390, QA5342 |
| RE-EX | 501-00278 |
| SOVEREIGN | SA948 |
| TMI | AL00278 |
| VALEO | 440433, 443159 |
| WAI | 22169R |
