Lucas

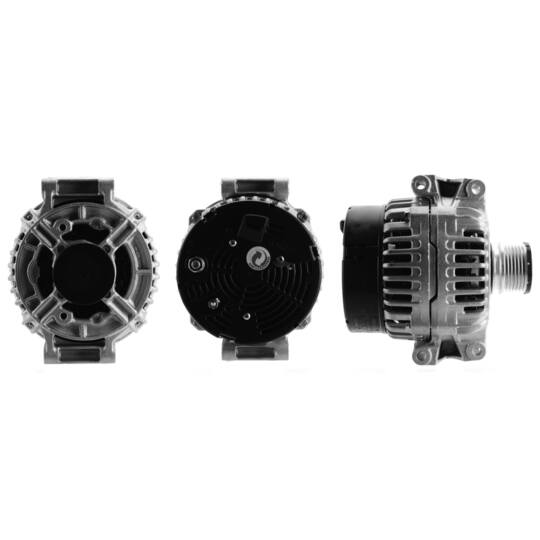

LRA01861 Alternator
SKU / part number
Lucas LRA01861 Alternator. Part no. LRA01861. Check specifications, vehicle fitment and references below.
Specifications
Alternator Charging Current
120 A
Vehicle Main Current
for vehicles with 12V main current
Voltage
14 V
Pulleys
with freewheel belt pulley
Belt Pulley Ø
50 mm
Number of ribs
6
Clamp
M8 B+ M5 D+
Plug Type ID
0230
Bore Diameter 1
9 mm
Net weight
7.3 kg
Shipping details
Weight
7.004 Kg
Customs Code
851150
Country of Origin
Denmark
Cross-Reference Numbers
| AS-PL | A0035 |
|---|---|
| ATL Autotechnik | L41590, L43660, L43900 |
| AUTOELECTRO | AEC1481 |
| BOSCH | 0123510082, 0123510107, 0123510108, 0124515064, 0124515091, 0124515114, 0124515118, 0124515216, 0986041590, 0986043660, 0986043663, 0986043900 |
| BV PSH | 555519115 |
| CASCO | CAL10142AS, CAL10142GS, CAL15323GS |
| CEVAM | 4260, 4802 |
| DELCO REMY | DRB1590, DRB3660, DRB3900, DRB3900N, RAA24011, RAA24771 |
| DENSO | DAN3005 |
| DRI | 2251311152, 2251311202 |
| EDR | 941590 |
| ELSTOCK | 28-3720, 28-7901 |
| EUROTEC | 12041590, 12043660, 12043900 |
| FRIESEN | 9041590, 9043900 |
| HELLA | 8EL 011, 710-421, 8EL737707-001 |
| HOLGER CRISTIANSEN | CA1481IR |
| JP GROUP | 1390100600 |
| LETRIKA | 11209440, AAN5572 |
| LUCAS ELECTRICAL | LRA04292, LRA1861 |
| MAGNETI MARELLI | 063731481010, 944390415900, 944390439000, MQA1481 |
| MAHLE | MG 448 |
| MERCEDES-BENZ | 0101545902, 0101549602, 0111540902, 0111547802, 0121542402, 0121545402, 012154540280, 0131541502, 013154150280, 0131543402, A0101545902, A0101549602, A0111540902, A0111547802, A0121542402, A0121545402, A012154540280, A0131541502, A013154150280, A0131543402 |
| NK | 4843660 |
| PowerMax | 89212334, 9212334 |
| QUINTON HAZELL | QRA2187, QRA2494 |
| RE-EX | 501-01856 |
| SOVEREIGN | SA347 |
| SPIDAN | 0005793 |
| TMI | AL01856 |
| VALEO | 200069, 437534, 437540, 437625, 439540, 440487, 440987, SG12B087 |
