Lucas

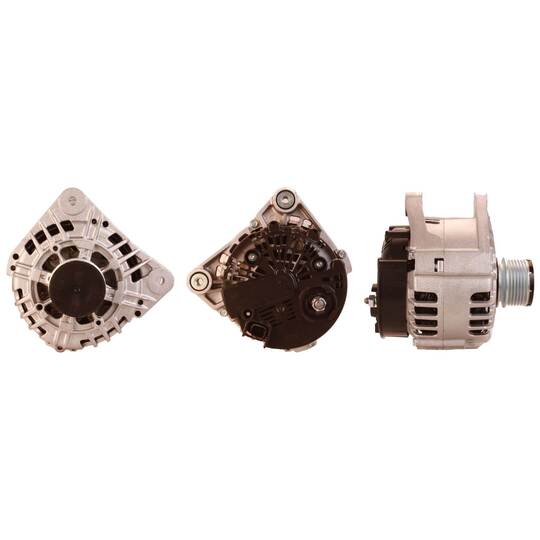

LRA02974 Alternator
SKU / part number
Lucas LRA02974 Alternator. Part no. LRA02974. Check specifications, vehicle fitment and references below.
Specifications
Alternator Charging Current
125 A
Vehicle Electrical System Design
for vehicles with 12V main current
Voltage
14 V
Pulleys
with freewheel belt pulley
Belt Pulley Ø
55 mm
Number of ribs
6
Clamp
M8 B+
Clamp
L-DFM
Plug Type ID
0129
Bore Diameter 1
8.5 mm
Net weight
6.5 kg
Always compare old and new part
in particular OE No.
Shipping details
Weight
6.5 Kg
Customs Code
851150
Country of Origin
Denmark
Cross-Reference Numbers
| AS-PL | A0667PR, A0667S, A3118 |
|---|---|
| ATL Autotechnik | L83060 |
| AUTOELECTRO | AEG1315, AEK2974 |
| BOSCH | 0986082600, 0986084060, F000BL0719 |
| BV PSH | 575.537.120.000, 575.537.120.008, 575.537.120.009, 575.537.120.500, 575.568.110, 575.902.120.000, 575.902.120.500, 575.951.120.011, 575.951.120.211, 575.951.120.280 |
| CASCO | CAL10006GS, CAL15341, CAL15341AS, CAL15341GS, CAL15408GS |
| CEVAM | 4518, 4678 |
| DACIA | 231001043R, 231001059R, 231002949R, 231003831R, 231005802R, 231007707R, 231008017R, 8200537415, 8201040655 |
| DELCO REMY | DRA0293, RAA11304 |
| DENSO | 63731933010 |
| DRI | 2303171252 |
| ELSTOCK | 28-5588 |
| ERA | 210816, 210816R |
| EUROTEC | 12090178 |
| FRIESEN | 9090412 |
| HC-Cargo | 113862, 116325 |
| HELLA | 8EL 011, 710-901, 8EL738211-801 |
| HOLGER CRISTIANSEN | CA1933IR |
| MAGNETI MARELLI | 063731933010, 359002801470, 943319331010, 944390904120, MARC1933, MQA1933 |
| NISSAN | 23100-00QBH, 23100-1059R, 23100-2949R, 23100-3831R, 23100-5802R, 23100-6398R, 23100-6429R, 23100-7707R, 23100-8017R |
| NK | 4839001 |
| PowerMax | 89213887, 9213887 |
| QUINTON HAZELL | QRA2771 |
| RE-EX | 501-02635 |
| RENAULT | 231001043R, 231001059R, 231002949R, 231003831R, 231005802R, 231006398R, 231007707R, 231008017R, 7711368619, 8200385098, 8200537415, 8201040655 |
| SOVEREIGN | SB313 |
| TMI | AL02635 |
| VALEO | 2542946, 2543378A, 2607395B, 2617345A, 437559, 439584, 439680, 440056, 440265, 747006, SG12B089, SG12B105, TG12C094, TG12C151, TG12C214, TG12C343 |
