Lucas

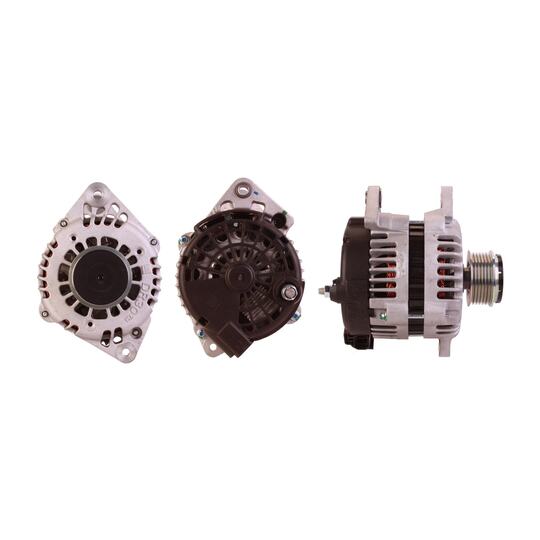

LRA03096 Alternator
SKU / part number
Lucas LRA03096 Alternator. Part no. LRA03096. Check specifications, vehicle fitment and references below.
Specifications
Alternator Charging Current
100 A
Vehicle Electrical System Design
for vehicles with 12V main current
Voltage
14 V
Pulleys
with freewheel belt pulley
Belt Pulley Ø
60 mm
Number of ribs
6
Clamp
M8 B+
Clamp
L-DFM
Plug Type ID
0111
Bore Diameter 1
10 mm
Net weight
5.78 kg
Shipping details
Weight
6.062 Kg
Customs Code
851150
Country of Origin
Denmark
Cross-Reference Numbers
| ALANKO | 10443439 |
|---|---|
| AS-PL | A1020, A1020PR, A1020SR |
| AUTOELECTRO | AEK3096 |
| BOSCH | 0986081150 |
| BV PSH | 135.566.100.030, 135.566.100.038, 135.566.100.039, 135.566.100.391 |
| CASCO | CAL60114AS, CAL60114GS, CAL60115, CAL60115GS |
| CEVAM | 4741 |
| DELCO REMY | 8400157, 8400159, 8400219, 8400221, DRA2074, DRA2074N, DRA4294, DRA4294N, RAA13185 |
| DENSO | 63533485010, 63533487010, 63732010010 |
| DRI | 2281771002 |
| EDR | 934294N |
| ELSTOCK | 28-5708 |
| ERA | 210845, 210845A |
| EUROTEC | 12090329 |
| FRIESEN | 9090656 |
| GENERAL MOTORS | 95519862 |
| HC-Cargo | 114665 |
| HELLA | 8EL 012, 426-121, 8EL738212-401 |
| HOLGER CRISTIANSEN | CA2010IR |
| ISUZU | 898031-1541, 898042-8720 |
| MAGNETI MARELLI | 063533485010, 063533487010, 063732010010, 943320101010, 944390906560, MARC2010, MQA2010 |
| NK | 4836009 |
| OPEL | 1202424, 6204274, 95519862, 98031154, 98042872 |
| PowerMax | 89213245 |
| RE-EX | 501-02745 |
| TMI | AL02745 |
| VALEO | 440907, 443092 |
| VAUXHALL | 95519862, 98031154, 98042872 |
| WAI | 24092R |
