Lucas

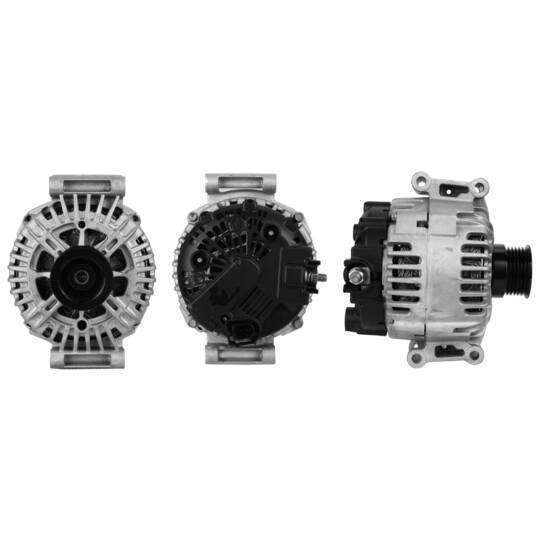

LRA03307 Alternator
SKU / part number
Lucas LRA03307 Alternator. Part no. LRA03307. Check specifications, vehicle fitment and references below.
Specifications
Thickness 1
70 | mm
Alternator Charging Current
150 A
Vehicle Electrical System Design
for vehicles with 12V main current
Voltage
14 V
Pulleys
with multi-belt pulley
Belt Pulley Ø
50 mm
Number of ribs
6
Clamp
M8 B+
Clamp
COM/LIN2-D
Plug Type ID
0239
Bore Diameter 1
8 mm
Bore Diameter 2
8 mm
Net weight
6.7 kg
Always compare old and new part
in particular OE No.
Shipping details
Weight
7.063 Kg
Customs Code
851150
Country of Origin
Denmark
Cross-Reference Numbers
| ALANKO | 10443542 |
|---|---|
| AS-PL | A3360, A3360S |
| AUTOELECTRO | AEK3307 |
| BOSCH | 0986084830 |
| BV PSH | 555.909.150.000, 555.909.150.004, 555.909.150.500 |
| CASCO | CAL15466, CAL15466GS |
| CEVAM | 4833 |
| DELCO REMY | DRA0803 |
| DRI | 2251881502 |
| ELSTOCK | 28-5919 |
| ERA | 209234, 209234A |
| EUROTEC | 12090557 |
| FRIESEN | 9090799 |
| HC-Cargo | 115988 |
| HELLA | 8EL012240-221 |
| MERCEDES-BENZ | 0009060401, A0009060401 |
| PowerMax | 89215592 |
| RE-EX | 501-02940 |
| TMI | AL02940 |
| VALEO | 2612243, 439746, 440336, A612243A, TG15C182 |
| WAI | 20561N |
