Lucas

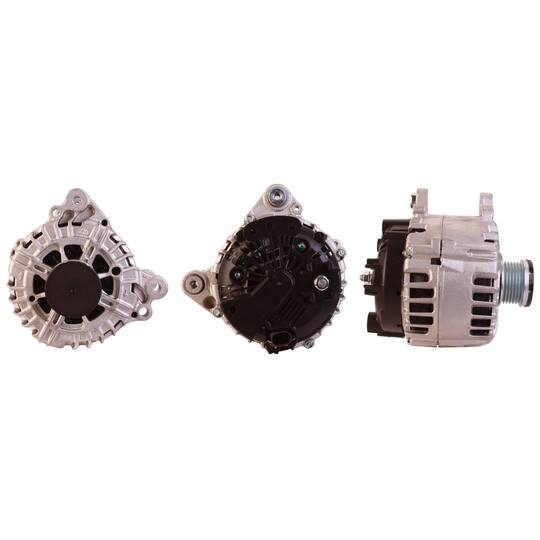

LRA03552 Alternator
SKU / part number
Lucas LRA03552 Alternator. Part no. LRA03552. Check specifications, vehicle fitment and references below.
Specifications
Alternator Charging Current
140 A
Vehicle Electrical System Design
for vehicles with 12V main current
Voltage
14 V
Pulleys
with freewheel belt pulley
Belt Pulley Ø
50 mm
Number of ribs
6
Clamp
M8 B+
Clamp
COM
Plug Type ID
0239
Bore Diameter 1
8.5 mm
Net weight
6.83 kg
Always compare old and new part
in particular OE No.
Shipping details
Weight
7.224 Kg
Customs Code
851150
Country of Origin
Denmark
Cross-Reference Numbers
| ALANKO | 10443539 |
|---|---|
| AS-PL | A0468PR, A0468S, A3309PR, A3309S |
| ATL Autotechnik | L83660 |
| AUDI | 03C903023S, 03C903023SX, 03C903023T, 03C903023TX |
| AUTOELECTRO | AEG1160, AEK3552 |
| BOSCH | 0124525188, 0124525543, 0986083140, 0986083530, 1986A00906 |
| BV PSH | 305.572.140.000, 305.572.140.004, 305.572.140.340, 305.572.140.500, 305.598.140, 305.598.140.010, 305.598.140.014, 305.598.140.018, 305.598.140.019, 305.598.140.210, 305.598.140.211, 305.598.140.280 |
| CASCO | CAL15498, CAL15577AS, CAL15577GS |
| CEVAM | 4158 |
| DELCO REMY | DRA0601, DRA1294 |
| DENSO | 63732190010 |
| DRI | 2113681402 |
| ELSTOCK | 28-6662 |
| ERA | 209226, 209228 |
| EUROTEC | 12090473 |
| FRIESEN | 9090584 |
| HC-Cargo | 115528 |
| HELLA | 8EL012240-181 |
| HOLGER CRISTIANSEN | CA2190IR |
| MAGNETI MARELLI | 063732190010, 944390905840, MQA2190 |
| NK | 4847931 |
| PowerMax | 89215539, 89216830 |
| QUINTON HAZELL | QRA1239 |
| RE-EX | 501-03154 |
| SEAT | 03C903023S, 03C903023SX, 03C903023T, 03C903023TX |
| SKODA | 03C903023S, 03C903023SX, 03C903023T, 03C903023TX |
| TMI | AL03154 |
| VALEO | 2608427A, 439720, 439850, 440310, 440590, 440921, 442298, 443086, TG14C028, TG14C054 |
| VW | 03C903023S, 03C903023SX, 03C903023T, 03C903023TX, 03C903024F, 03C903024FX |
| WAI | 20147N |
