Lucas

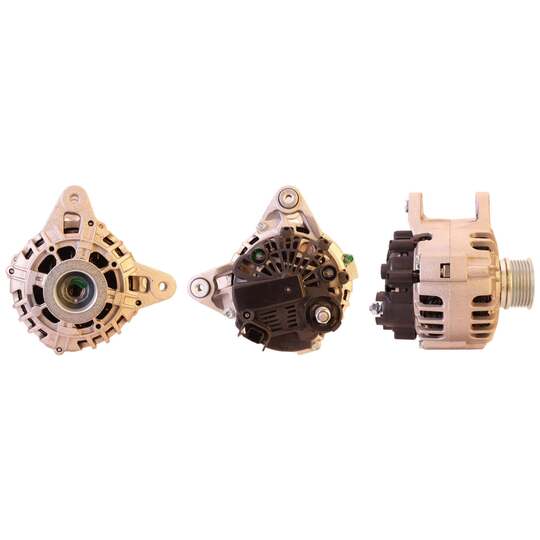

LRA03590 Alternator
SKU / part number
Lucas LRA03590 Alternator. Part no. LRA03590. Check specifications, vehicle fitment and references below.
Specifications
Alternator Charging Current
14 A
Vehicle Electrical System Design
for vehicles with 12V main current
Voltage
12 V
Pulleys
with multi-belt pulley
Belt Pulley Ø
55 mm
Number of ribs
6
Clamp
M8 B+
Clamp
L-DFM
Plug Type ID
0129
Bore Diameter 1
8 mm
Net weight
5.24 kg
Always compare old and new part
in particular OE No.
Shipping details
Weight
5.703 Kg
Customs Code
851150
Country of Origin
Denmark
Cross-Reference Numbers
| ALANKO | 10443832, 10443876 |
|---|---|
| AS-PL | A3130, A3130S |
| ATL Autotechnik | L81920, L85330 |
| AUTOELECTRO | AEG1301 |
| BOSCH | 0986083190, F000BL0408, F000BL04C9, F000BL04CU, F000BL04E9, F000BL04K9, F000BL04L1, F000BL04L8, F000BL04M7, F000BL0502B |
| BV PSH | 575.926.090, 575.926.090.000, 575.926.090.500, 575.926.090.505, 575.950.090.010, 575.950.090.018, 575.950.090.210, 575.950.090.211, 575.950.090.215, 575.950.090.280, 575.985.090.280 |
| CASCO | CAL10450GS, CAL15444, CAL15444AS, CAL15444GS |
| CEVAM | 4504, 4890 |
| DACIA | 23100-2299R, 23100-5780R, 23100-5854R, 23100-8432R, 231003449R, 231007175R, 7711497535, 8200810621 |
| DELCO REMY | DRA0854, DRA1220 |
| DENSO | 63732098010 |
| DRI | 230354902 |
| ELSTOCK | 28-6700 |
| ERA | 209056A, 210856, 210856A |
| EUROTEC | 12090404, 12090429 |
| FRIESEN | 9090713 |
| HC-Cargo | 114879, 116175 |
| HOLGER CRISTIANSEN | CA2098IR |
| HONDA | TG9B047, TG9B053 |
| LADA | 231005780R |
| MAGNETI MARELLI | 063732098010, 944390907130, MQA2098 |
| NISSAN | 23100-7633R |
| NK | 4839803 |
| PowerMax | 89215339, 89215558, 89215559 |
| RE-EX | 501-03189 |
| RENAULT | 23100-3449R, 23100-7175R, 231002299R, 231005780R, 231005854R, 231008432R, 7711497535, 8200674762, 8200810621 |
| TMI | AL03189 |
| VALEO | 200209, 2605647D, 439661, 440246, 446541 |
| WAI | 20399N |
