Mahle

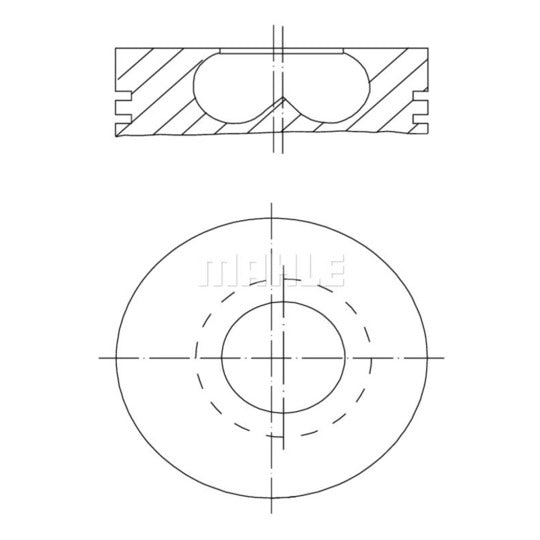

007 04 00 Piston
SKU / part number
Mahle 007 04 00 Piston. Part no. 007-04-00. Check specifications, vehicle fitment and references below.
Specifications
Length
96.8 | mm
Standard Size
STD
Cylinder Bore
93.0 mm
Compression Height
58.75 mm
Bolt Length
75.0 mm
Bolt Head Diameter
32.0 mm
Recess Depth 1
16.9 mm
Recess Diameter
40.0 mm
Machined
with cut-out for oil jet
Surface
Coated
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
without cooling duct
Top Land Height
3.5 mm
Production Number
93 L 79
Piston Clearance
0.08 mm
Component Number
1.T3.0 15° Cr P
Component Number
2. M2.0 IWU Mo
Component Number
3. DSF3.0 Cr P
Packaging length
11.6 cm
Packaging width
11.60 cm
Net Weight
1227 g
Packaging height
14.30 cm
Shipping details
Weight
1.29 Kg
Customs Code
840999
Country of Origin
Poland
Cross-Reference Numbers
| FIAT | 0000009944464, 99444464, 9944464 |
|---|---|
| IVECO | 0000002991860, 2991860 |
| KOLBENSCHMIDT | 94 32760 0, 94 32770 0 |
| NÜRAL | 87-425000-00 |
| RENAULT | 5001833122 |
