Mahle

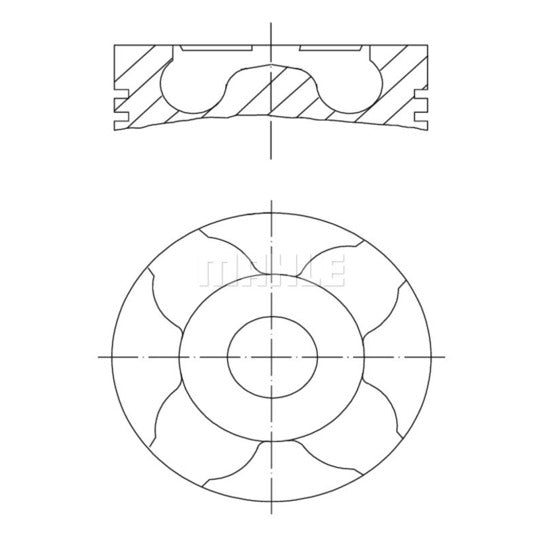

010 04 01 Piston
SKU / part number
Mahle 010 04 01 Piston. Part no. 010-04-01. Check specifications, vehicle fitment and references below.
Specifications
Length
63.4 | mm
Cylinder Bore
70.2 mm
Compression Height
40.43 mm
Bolt Length
56.1 mm
Bolt Head Diameter
23 mm
Recess Depth 1
12.4 mm
Recess Diameter
37 mm
Valve Pocket Depth 1
1.17 mm
Valve Pocket Depth 2
0.97 mm
Machined
with cut-out for oil jet
Surface
Coated
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
without cooling duct
Top Land Height
7.5 mm
Connecting Rod Design
Trapezoidal Connecting Rod
Production Number
70 L 84
Piston Clearance
0.07 mm
Component Number
1. R 2.0 CrK
Component Number
2. M 1.5 IFU P
Component Number
3. DSF 2.0 Cr
Packaging height
12.80 cm
Net Weight
500 g
Packaging length
9.5 cm
Packaging width
9.50 cm
Shipping details
Weight
0.565 Kg
Customs Code
840999
Country of Origin
Turkey
