Mahle

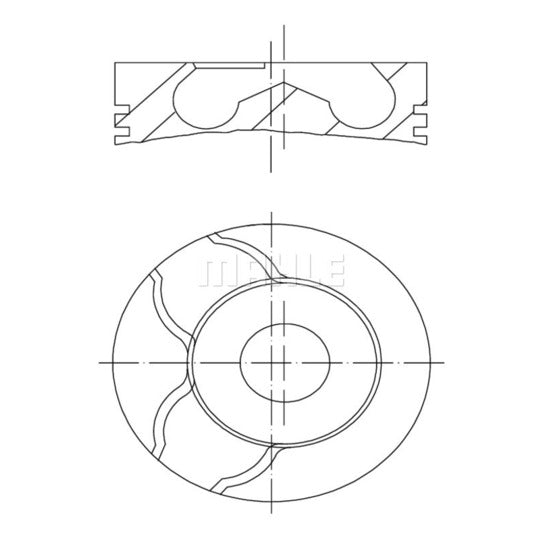

022 09 02 Piston
SKU / part number
Mahle 022 09 02 Piston. Part no. 022-09-02. Check specifications, vehicle fitment and references below.
Specifications
Length
76.1 | mm
Cylinder Bore
80.51 mm
Compression Height
47.06 mm
Bolt Length
60.0 mm
Bolt Head Diameter
28.0 mm
Recess Depth 1
17.8 mm
Recess Diameter
38.0 mm
Valve Pocket Depth 1
0.75 mm
Machined
with cut-out for oil jet
Surface
Coated
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
with cooling duct
Connecting Rod Design
Trapezoidal Connecting Rod
Production Number
80 L 124
Piston Clearance
0.09 mm
Component Number
1. R 2.5 IF Mo
Component Number
2. M 2.0 IFU
Component Number
3. DSF 3.0 Cr
Packaging height
12.80 cm
Net Weight
780 g
Packaging length
9.5 cm
Packaging width
9.50 cm
Shipping details
Weight
0.93 Kg
Customs Code
840991
Country of Origin
Germany
Cross-Reference Numbers
| KOLBENSCHMIDT | 99 78062 0 |
|---|---|
| NÜRAL | 87-422307-00 |
