Mahle

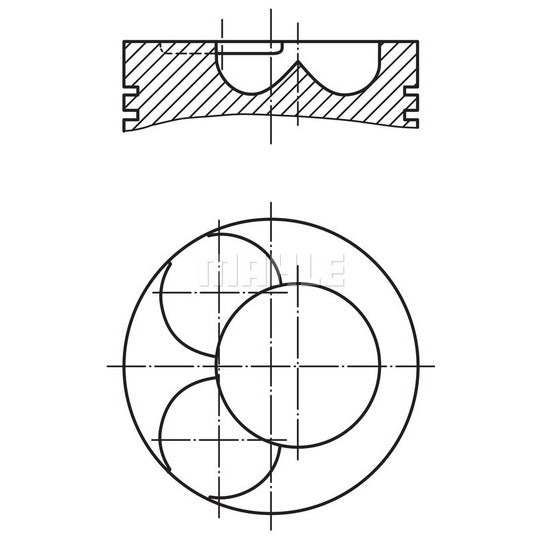

028 07 02 Piston
SKU / part number
Mahle 028 07 02 Piston. Part no. 028-07-02. Check specifications, vehicle fitment and references below.
Specifications
Length
69.8 | mm
Fitting Position
to cylinder 3
Fitting Position
to cylinder 4
Fitting Position
for cylinder 3-4
Cylinder Bore
81.51 mm
Compression Height
45.8 mm
Bolt Length
66.0 mm
Bolt Head Diameter
26.0 mm
Recess Depth 1
17.5 mm
Recess Diameter
38.0 mm
Valve Pocket Depth 1
0.7 mm
Machined
with cut-out for oil jet
Surface
Coated
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
with cooling duct
Production Number
81 L 115
Component Number
1. R 1.75 CrK
Component Number
2. M 2.0 IFU P
Component Number
3. DSF 3.0 Cr
Packaging height
12.80 cm
Net Weight
870 g
Packaging length
9.5 cm
Packaging width
9.50 cm
Shipping details
Weight
0.842 Kg
Customs Code
840999
Country of Origin
Germany
Cross-Reference Numbers
| KOLBENSCHMIDT | 40 40962 0 |
|---|---|
| NÜRAL | 87-139507-20 |
