Mahle
030 41 00 Piston
SKU / part number

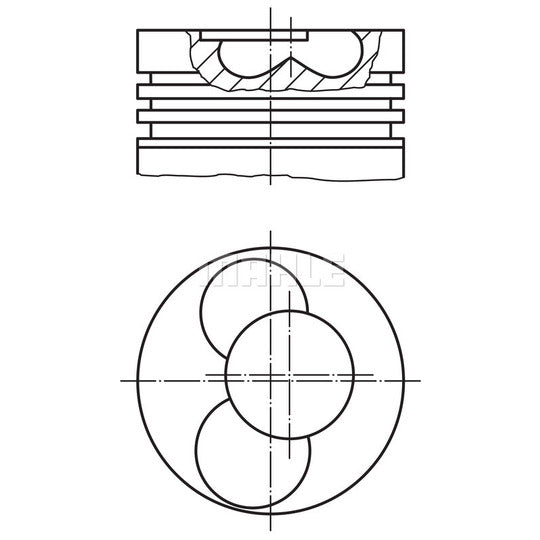

Mahle 030 41 00 Piston. Part no. 030-41-00. Check specifications, vehicle fitment and references below.
Specifications
Length
71.8 | mm
Standard Size
STD
Fitting Position
to cylinder 3
Fitting Position
to cylinder 4
Fitting Position
for cylinder 3-4
Cylinder Bore
79.51 mm
Compression Height
45.8 mm
Bolt Length
66.0 mm
Bolt Head Diameter
26.0 mm
Recess Depth 1
17.65 mm
Recess Diameter
37.9 mm
Valve Pocket Depth 1
1.1 mm
Machined
with cut-out for oil jet
Surface
Coated
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
without cooling duct
Top Land Height
9.1 mm
Production Number
79 L 46
Piston Clearance
0.07 mm
Component Number
1. R 1.75 Cr P
Component Number
2.M2.0 IFU Cr P
Component Number
3. DSF 3.0 Cr
Packaging height
12.80 cm
Net Weight
800 g
Packaging length
9.5 cm
Packaging width
9.50 cm
Shipping details
Weight
0.88 Kg
Customs Code
840999
Country of Origin
France
Cross-Reference Numbers
| AUDI | 028107065AB, 028107065AC, 028107065AK, 028107065AM, 028107065BD, 028107065CA, 028107065CB, 028107065J, 028107101AK, 038107065AB001, 038107065AB003, 038107065DD, 038107065J, 038107065L |
|---|---|
| CUPRA | 028107065AB, 028107065AC, 028107065AK, 028107065AM, 028107065BD, 028107065CA, 028107065CB, 028107065J, 028107101AK, 038107065AB001, 038107065AB003, 038107065DD, 038107065J, 038107065L |
| KOLBENSCHMIDT | 94 428 700 |
| NÜRAL | 87 114900 95 |
| VW | 028 107 065 A B, 028 107 065 A C, 028 107 065 A K, 028 107 065 A M, 028 107 065 B D, 028 107 065 C A, 028 107 065 C B, 028 107 065 J, 028 107 101 A K, 038 107 065 AB001, 038 107 065 AB003, 038 107 065 D D, 038 107 065 J, 038 107 065 L |
