Mahle

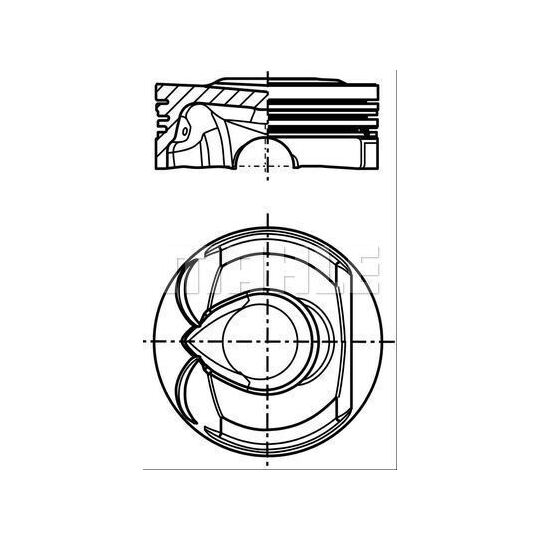

039 PI 00123 002 Piston
SKU / part number
Mahle 039 PI 00123 002 Piston. Part no. 039-PI-00123-002. Check specifications, vehicle fitment and references below.
Specifications
Length
50.7 | mm
Cylinder Bore
77.5 mm
Compression Height
28.5 mm
Bolt Length
48 mm
Bolt Head Diameter
20 mm
Recess Depth 1
3.57 mm
Recess Diameter
34.8 mm
Valve Pocket Depth 1
2 mm
Surface
Hard Anodized
Supplementary Article/Supplementary Info 2
without cooling duct
Top Land Height
5.5 mm
Connecting Rod Design
Trapezoidal Connecting Rod
Production Number
77 L 51
Piston Clearance
0.050 mm
Component Number
1. R1.2 IF Mo P
Component Number
2. NM 1.5 P
Component Number
3. 3S 2 Cr
Component Number
3. 3S 2.0 Cr
Packaging height
12.80 cm
Net Weight
359 g
Packaging length
9.5 cm
Packaging width
9.50 cm
Shipping details
Weight
0.366 Kg
Customs Code
840991
Country of Origin
Germany
