Mahle

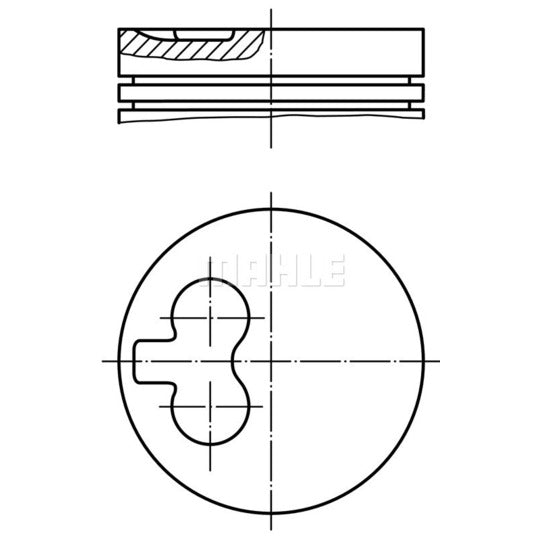

040 01 01 Piston
SKU / part number
Mahle 040 01 01 Piston. Part no. 040-01-01. Check specifications, vehicle fitment and references below.
Specifications
Length
78.0 | mm
Cylinder Bore
82.8 mm
Compression Height
46.7 mm
Bolt Length
66.0 mm
Bolt Head Diameter
25.0 mm
Recess Depth 1
2.4 mm
Recess Diameter
25.4 mm
Machined
with cut-out for oil jet
Surface
Tin-plated
Supplementary Article/Supplementary Info 2
without cooling duct
Top Land Height
12.5 mm
Production Number
82 L 108
Piston Clearance
0.04 mm
Component Number
1. R 2.0 Mo
Component Number
2. M 2.0 IFU
Component Number
3. DSF3.0 Cr P
Packaging height
12.80 cm
Net Weight
700 g
Packaging length
9.5 cm
Packaging width
9.50 cm
Shipping details
Weight
0.754 Kg
Customs Code
840999
Country of Origin
Germany
Cross-Reference Numbers
| NÜRAL | 87-104008-00 |
|---|
