Mahle

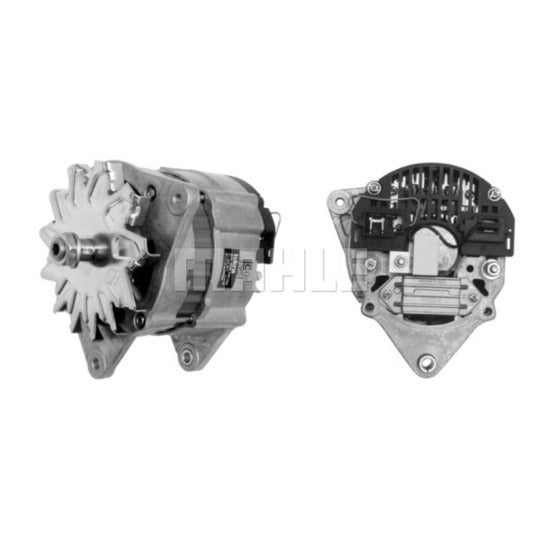

MG 216 Alternator
SKU / part number
Mahle MG 216 Alternator. Part no. MG-216. Check specifications, vehicle fitment and references below.
Specifications
Voltage
14 V
Alternator Charging Current
70 A
Pulleys
without belt pulley
Rotation Direction
Clockwise rotation
Bore Diameter
8.2 mm
Distance of mounting bores
82 mm
Mounting points diameter
86.0 mm
Mounting Angle
60.0 degrees
Connector/Clamp
W
Packaging height
17.50 cm
Packaging width
18.60 cm
Packaging length
24.8 cm
Net Weight
4515 g
Shipping details
Weight
4.822 Kg
Customs Code
851150
Country of Origin
Slovenia
OE Numbers
| CASE IH | 229 301 A1 |
|---|---|
| CLAAS | 6005706664, CT6005706664 |
| CUMMINS | 3 907 749 |
| JUNGHEINRICH | 50043938 |
| LAND ROVER | ADU1148, AUU1053, AUU1184, RTC5846, YLE101560, YLE101700 |
| LISTER PETTER | 382-08919 |
| MASSEY FERGUSON | 6100 316 M91 |
| PERKINS | 2871A142, 2871A161 |
| ROVER | 24161, 24198, 24219, 24228, 24241 |
Cross-Reference Numbers
| CASE IH | 229 301 A1 |
|---|---|
| CLAAS | 6005706664, CT6005706664 |
| CUMMINS | 3 907 749 |
| DELPHI | 24 297 |
| ELECTROLOG | ALT79193 |
| JUNGHEINRICH | 50043938 |
| LAND ROVER | ADU1148, AUU1053, AUU1184, RTC5846, YLE101560, YLE101700 |
| LISTER PETTER | 382-08919 |
| LUCAS ELECTRICAL | LRA00462, LRA00463, LRA00653, LRA00693 |
| MAGNETI MARELLI | 540 220 58A, 540 220 58B, 540 220 60A, 540 221 62, 540 221 79, 540 221 92, 540 221 96, 540 222 35, 540 222 63, 540 223 09, 540 223 93, 540 225 10, 540 225 52, 540 226 19, 540 226 35, 540 226 46, 540 226 48, 540 226 63, 540 226 66, 633 241 61, MAN 104, MAN 133, MAN 697, MAN 751 |
| MASSEY FERGUSON | 6100 316 M91 |
| PERKINS | 2871A142, 2871A161 |
| ROVER | 24161, 24198, 24219, 24228, 24241 |
| Sparex | 36169 |
| VALEO | VA 135 |
