Mann-Filter

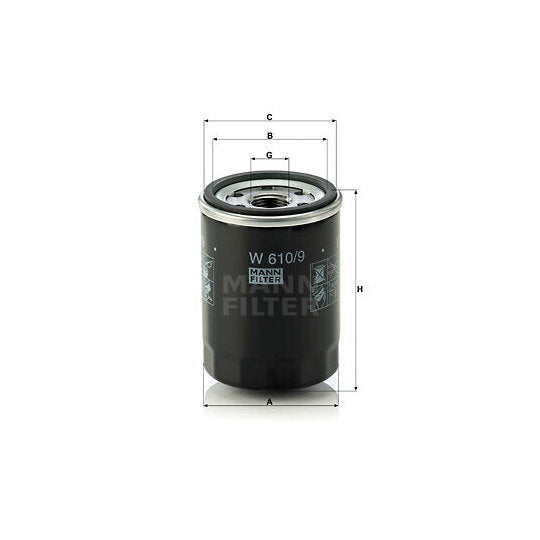

W 610/9 Oil filter
SKU / part number
Mann-Filter W 610/9 Oil filter. Part no. W-610-9. Check specifications, vehicle fitment and references below.
Specifications
Height
90 | mm
Outer Diameter
66 | mm
Filter type
Spin-on Filter
EU General Product Safety Regulation
IEC 60417-6183 mechanical expertise required GPSR
Article number of the recommended special tool
LS 6/1
Thread Size
3/4-16 UNF
Supplementary Article/Supplementary Info 2
with one anti-return valve
Bypass Valve Opening Pressure
1.0 bar
Gasket inside diameter
54 mm
Gasket outside diameter
62 mm
Shipping details
Weight
0.255 Kg
Customs Code
842123
Country of Origin
Germany
Cross-Reference Numbers
| AMC Filter | DO-722 |
|---|---|
| BECK/ARNLEY | 410758, 410801, 418066, 418102 |
| BLUE PRINT | ADT 32112 |
| BOSCH | 0 451 103 276, P3276 |
| CHAMPION | C 163/606, CC111-01/O01, CC181-01/O01, CM116-03 |
| COMLINE | CSZ11940, CTY11123 |
| DENSO | 115010-4950, 1150102041, 1150102700, 1150105041, 1150105720, 1150105721, 150-1015, BT1150106420 |
| EUROREPAR | 1643610880 |
| FEBI BILSTEIN | 184270 |
| FILMAR | SO8312A, SO8561 |
| FILTRON | OP 621 |
| FRAM | HM4386, PH4386FP, TG4386, XG4386 |
| HENGST FILTER | H97W16 |
| HERTH+BUSS JAKOPARTS | J1312014 |
| JOHN DEERE | TY26278 |
| LEE | LF2841, LF2841HP |
| MAHLE | OC 1259, OC 1263, OC 1294, OC 217, OC 586, OC 586/1 |
| MEYLE | 30-14 322 0009 |
| MICRONAIR | OF072 |
| MULLER FILTER | FO674 |
| NIPPARTS | J1312014 |
| PERKINS | 140506250 |
| PUROLATOR | L19219 |
| QUINTON HAZELL | QFL0045 |
| SAKURA Automotive | C-1136, C-1140, C-1404, C1205 |
| TOYOTA | 15601-76008, 15601-76008-71, 90080-91210, 90915-03004, 90915-10002, 90915-10004, 90915-TA002, 90915-YZZE2, 90915-YZZJ2 |
| UFI | 23.251.00 |
| UNIPART | GFE 702 |
| VALEO | 586040 |
| WIX FILTERS | WL7177 |
