Mann-Filter

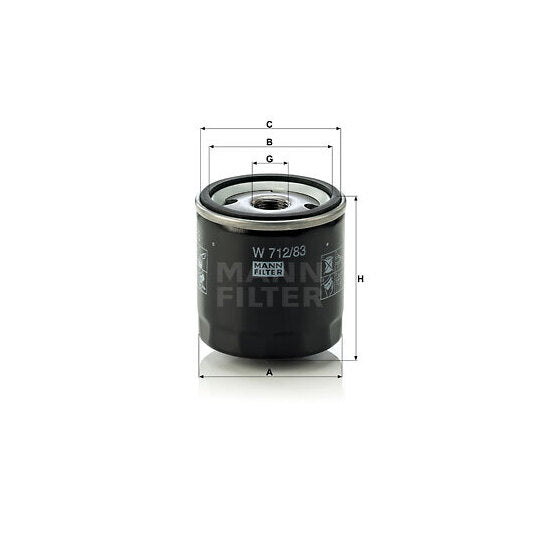

W 712/83 Oil filter
SKU / part number
Mann-Filter W 712/83 Oil filter. Part no. W-712-83. Check specifications, vehicle fitment and references below.
Specifications
Height
79 | mm
Outer Diameter
76 | mm
Filter type
Spin-on Filter
EU General Product Safety Regulation
IEC 60417-6183 mechanical expertise required GPSR
Article number of the recommended special tool
LS 7
Thread Size
3/4-16 UNF
Supplementary Article/Supplementary Info 2
with one anti-return valve
Bypass Valve Opening Pressure
1.0 bar
Gasket inside diameter
62 mm
Gasket outside diameter
71 mm
Shipping details
Weight
0.325 Kg
Customs Code
842123
Country of Origin
Germany
Cross-Reference Numbers
| ACDelco | PF 53, X 170, X 4105 E |
|---|---|
| ADR | C1147XPL |
| ALCO FILTER | SP-994 |
| AMC Filter | TO-129, TO-131, TO-133, TO-138 |
| ARMAFILT | O-76/84.2 |
| ASAS | SP 402 BK, SPC 111, SPC 114 |
| ASHIKA | 10-02-215, 10-02-279, FO-279JM |
| AVS AUTOPARTS | Z253 |
| BALDWIN | B1405, BT223 |
| BIG FILTER | GB-1102 |
| BLUE PRINT | ADT 32103, ADT 32108, ADT 32114, ADT32114S |
| BMW | 11 42 7 791 059 |
| BOSCH | 0 986 452 002, 0 986 452 044, 0 986 627 598, 0 986 AF0 055, 0 986 AF1 009, 0 986 AF1 043, 0 986 AF1 046, 0 986 AF1 073, 0 986 AF1 117, 0 986 AF1 129, 0 986 AF1 132, 0 986 AF1 134, 9 451 103 600, F 00E 160 070, F 026 407 133, P2044 |
| BRIGGS & STRATTON | 491 056, 807 894 |
| CATERPILLAR | 220-1523 |
| CHAMP | LS 137 |
| CHAMPION | C102/606, CC118-01/O01, COF100102S, COF100277S, COF100294S, COF100754S, COF101284S |
| CHERY | 480-1012010 |
| CLEAN FILTERS | DO 339, DO 910, DO 911 |
| COMLINE | CTY11111, CTY11140, CTY11171, EOF233 |
| COOPERS | LSF 5209, Z 1015, Z 1319 |
| CROSLAND FILTERS | 2110, 2330, 439 |
| CoopersFiaam | FT4809, FT5161A, FT5274 |
| DAIHATSU | 15600-25010, 15600-87104, 15600-87307, 15601-87307, 15601-87705, 40111-834 |
| DELPHI | FX0081 |
| DENSO | 115010-4960, 115010-5011, 115010-5021 |
| DONALDSON | P502016, P550335 |
| DT Spare Parts | 14.15000 |
| DYNAPAC | 4700376554 |
| Dr!ve+ | DP1110110040 |
| ELOFIC | EXL-151 |
| EUROREPAR | 1609563480, 1656299380, 1682271180, 1691040380, 1691040680 |
| FEBI BILSTEIN | 1000619, 185230, 27147 |
| FIAT | 59030255, 74434793, 74434794, 74446335 |
| FIL FILTER | ZP 502 B, ZP 507 D, ZP 557 |
| FILMAR | SO8139 |
| FILTRON | OP 618 |
| FLEETGUARD | LF3874 |
| FRAM | PH3614, PH4985 |
| GEHL | N132023 |
| GIF | GL 294 |
| GUD FILTERS | Z 11, Z 118, Z 147, Z 217, Z 269, Z 384 |
| HENGST FILTER | H14W32, H90W30 |
| HERTH+BUSS JAKOPARTS | J1312004, J1312011, J1312015 |
| HIFI FILTER | SO 3335, SO 7193, T 1641 |
| HOFFER | 7605074, 7605074/4 |
| JAPANPARTS | FO-211, FO-211S, FO-215, FO-215S, FO-218S, FO-279, FO-279JM, FO-279S, FO-299, FO-299S, JFO-211, JFO-211S, JFO-215, JFO-215S, JFO-218S, JFO-279, JFO-279S, JFO-299, JFO-299S |
| JOHN DEERE | AM101207, HE122-0338, TCA10018 |
| JUNGHEINRICH | 51346113 |
| KOLBENSCHMIDT | 50 013 510, 50 013 820, 50 013 820/3, 510-OS, 820-OS, 820/3-OS |
| LUBERFINER | PH 2835 |
| M-Filter | MH 3373, MH 73 |
| MAGNETI MARELLI | 152071760788, 71760788 |
| MAHLE | OC 1293, OC 1648, OC 1734, OC 235, OC 338, OC 478, OC 610, OC 664, OC 668, OC 988 |
| MEAT & DORIA | 15074, 15074/4 |
| MECAFILTER | ELH 4248, ELH4483 |
| MEYLE | 30-14 322 0011, 30143220004 |
| MFILTER | TF 6511 |
| MICRONAIR | OF069 |
| MINI | 11 42 0 306 483, 11 42 7 791 059 |
| MISFAT | Z147, Z253, Z477 |
| MOTAQUIP | VFL 346, VFL 370, VFL 372 |
| MOTRIO | 8660003024, 8671014017 |
| MULLER FILTER | FO458 |
| NIPPARTS | J1312004, J1312011, J1312015, J1312021, N1315033 |
| ONAN | 0122-0645, 122-0645 |
| PURFLUX | LS359 |
| PUROLATOR | L 10241, L 14477 |
| QUINTON HAZELL | QFA0192, QFL0077, QFL0093, QFL0138, QFL0260 |
| RYCO | Z131A, Z418, Z87A |
| SAKURA Automotive | C-1147 |
| SCT - MANNOL | SM 143 |
| SF FILTER | SP 4017 |
| SHIBAURA | SBA140517050 |
| SOFIMA | S 3253 R, S 3477 R, S 3510 R |
| SWAG | 81 92 7147 |
| SogefiPro | FT1516A |
| TEHO | 4075, OK 28 |
| TJ FILTERS | FB 5400 |
| TOYOTA | 04152-03002, 04152-64010, 08922-02011, 15600-25010, 15600-25010-83, 15601-25010, 15601-76009, 15601-76009-71, 15601-78001, 15601-78001-71, 15601-96006, 40150-30370-71, 90915-03002, 90915-03005, 90915-20001, 90915-20002, 90915-20003, 90915-20004, 90915-33021, 90915-40001, 90915-TB001, 90915-TB001-00, 90915-YZZG1, 90915-YZZJ3, 90915-YZZJ4 |
| TRP | 1500886 |
| UFI | 23.214.00, 23.253.00, 23.477.00 |
| UNICO FILTER | LI 779/83, LI 786/80 |
| UNIPART | GFE 334, GFE 551 |
| VAG | J90 915 200 01, J90 915 200 03 |
| VAICO | V70-0016, V70-0116 |
| VALEO | 585255, 586047, 586073, 586987 |
| VIC | C-111, C-114, C-705 |
| WEIDEMANN | 100 023 1366, 574 751 7050 |
| WIX FILTERS | WL7172 |
