Mann-Filter
W 816/80 Oil filter
SKU / part number

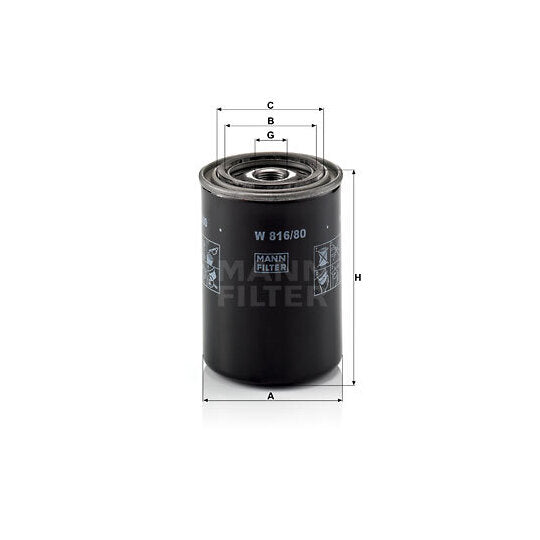

Mann-Filter W 816/80 Oil filter. Part no. W-816-80. Check specifications, vehicle fitment and references below.
Specifications
Height
120 | mm
Outer Diameter
85 | mm
Filter type
Spin-on Filter
EU General Product Safety Regulation
IEC 60417-6183 mechanical expertise required GPSR
Thread Size
M20x1.5
Supplementary Article/Supplementary Info 2
with one anti-return valve
Bypass Valve Opening Pressure
1.0 bar
Gasket inside diameter
57 mm
Gasket outside diameter
65 mm
Shipping details
Weight
0.47 Kg
Customs Code
842123
Country of Origin
South Africa
Cross-Reference Numbers
| ACDelco | PF 970, X 4133 E |
|---|---|
| ALCO FILTER | SP-852, SP-922 |
| AMC Filter | MO-431, MO-523 |
| ARMAFILT | O-93/125.1 |
| ASAS | SPC 302, SPC 502 |
| ASHIKA | 10-05-503, 10-09-901 |
| AVS AUTOPARTS | Z231 |
| BALDWIN | B202 |
| BLUE PRINT | ADC 42104, ADC42102, ADD62105, ADH22107, ADM 52101 |
| BOSCH | 0 986 452 020, 0 986 AF1 029, 0 986 AF1 081, P2020 |
| CHAMP | LS 148, PH 2811 |
| CLEAN FILTERS | DO 206 |
| COOPERS | LSF 5009 |
| CROSLAND FILTERS | 375 |
| CoopersFiaam | FT5097, FT5125 |
| DAIHATSU | 15601-87305, 15601-87309, 15601-87310 |
| DELPHI | FX0140 |
| DIGÖMA | DGM 1001 |
| DONALDSON | P550933 |
| ELOFIC | EXL-216 |
| FIL FILTER | ZP 504 |
| FILMAR | SO8145, SO8229 |
| FILTRON | OP 555 |
| FLEETGUARD | LF3528, LF3812 |
| FORD | E3TZ 6731 C |
| FRAM | PH2921, PH2977A |
| GENERAL MOTORS | 25011441, 94217272 |
| GIF | GL 361, GL 632 |
| GUD FILTERS | Z 196 |
| HENGST FILTER | H20W05 |
| HERTH+BUSS JAKOPARTS | J1315003, J1316005, J1319001 |
| IPS Parts | IFL-3503 |
| ISEKI | 6999-999-003-00 |
| ISUZU | 8-94217-272-0, 8-94217-272-1 |
| JAPANPARTS | FO-503, FO-503S, FO-605, FO-605S, FO-901, FO-901S, JFO-503, JFO-503S, JFO-605, JFO-605S, JFO-901 |
| LUBERFINER | PH 2811 |
| M-Filter | MH 390 J |
| MAHLE | OC 138, OC 277, OC 503 |
| MAZDA | S 213-23802 |
| MELROE | 6659329 |
| MISFAT | Z231 |
| MITSUBISHI | MD 013661, MD 162 326 |
| MOTAQUIP | VFL 277, VFL225 |
| MULLER FILTER | FO229 |
| Motorcraft | FL 786, FL 786 A |
| NIPPARTS | J1315003, J1316005, J1319001 |
| P.B.R. | BC-1151 |
| PURFLUX | LS820 |
| PUROLATOR | L 20253, L 20287, L 38083, PER 287 |
| PZL Filters | PP-72 |
| QUINTON HAZELL | QFL0109 |
| RYCO | Z110, Z312 |
| SCHAEFF | 5.527.662.013 |
| SCT - MANNOL | SM 185 |
| SF FILTER | SP 4063 |
| SOFIMA | S 3234 R, S 9220 R |
| TECNECO FILTERS | OL 229 |
| TECNOCAR | R229 |
| TEHO | 4025, OK 108, OK 25 |
| TOYOTA | 15601-87305 |
| TRP | 1500951 |
| UFI | 23.231.00, 23.234.00, 23.243.00 |
| VIC | C-302 |
| WIX FILTERS | WL7103 |
| WOODGATE | WGL3369 |
