Maxgear

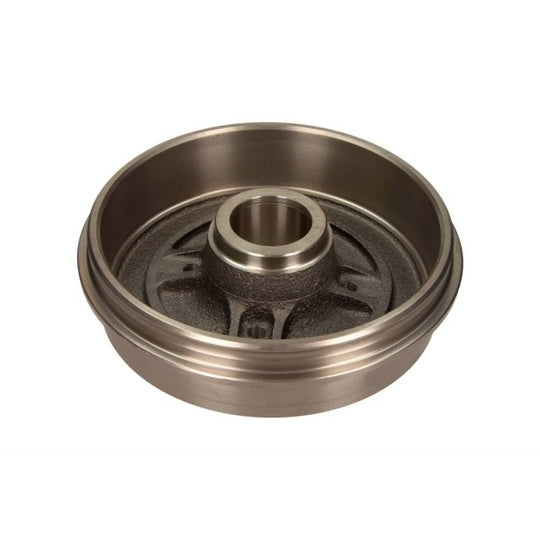

19-1350 Brake Drum
SKU / part number
Maxgear 19-1350 Brake Drum. Part no. 19-1350. Check specifications, vehicle fitment and references below.
Specifications
Centering Diameter
52 | mm
Fitting Position
Rear Axle
Supplementary Article/Supplementary Info 2
with wheel hub
Supplementary Article/Supplementary Info 2
without ABS sensor ring
Supplementary Article/Supplementary Info 2
without wheel bearing
Supplementary Article/Supplementary Info 2
without wheel studs
Stub Axle Diameter
25 mm
Bolt Hole Circle Ø
100 mm
Total brake drum height
76 mm
Inner brake drum height
51 mm
Inner brake drum diameter
203 mm
Outer brake drum diameter
234 mm
Number of Holes
4
max. brake drum reboring dimension
204.5 mm
Shipping details
Weight
5.478 Kg
Customs Code
870830
Country of Origin
China
Cross-Reference Numbers
| A.B.S. | 2828S, 2829S, 2880S, 2880SC, 2881SC, 5345S |
|---|---|
| ATE | 24.0220-3037.1, 24022030361, 480301 |
| BENDIX | 329732B |
| BENDIX Braking | BDM1135 |
| BOSCH | 0 986, 477 120, 0986477210, 0986477211, 0986477289 |
| BRECO | BT4747 |
| BREMBO | 14725720 |
| DACIA | 432009941R, 8200243735 |
| DELPHI | BF427 |
| HELLA PAGID | 355300671, 355302871, 8DT355300671, 8DT355302871 |
| JAPANPARTS | TA-007, TA-007C, TA-008, TA-008C |
| JURID | 329732J |
| LPR | 7D0665, 7D0665C, 7D0665CA |
| METZGER AUTOTEILE | BT2001 |
| MINTEX | MBD293 |
| NK | 253928, 253930 |
| PAGID | 61275, 61390, 61427 |
| QUINTON HAZELL | BDR440 |
| REMSA | 710300 |
| RENAULT | 432004255R, 432023259R, 432024763R, 8200243735, 8200290352 |
| ROADHOUSE | 710300 |
| STELLOX | 60253912SX |
| TEXTAR | 94019700, 94027500, 94042400 |
| TRW | DB4214, DB4214B, DB4373, DB4373B |
| WOKING | B710300 |
| ZIMMERMANN | 14725720 |
| sbs | 1825253928, 1825253930, 253928 |
