Maxgear

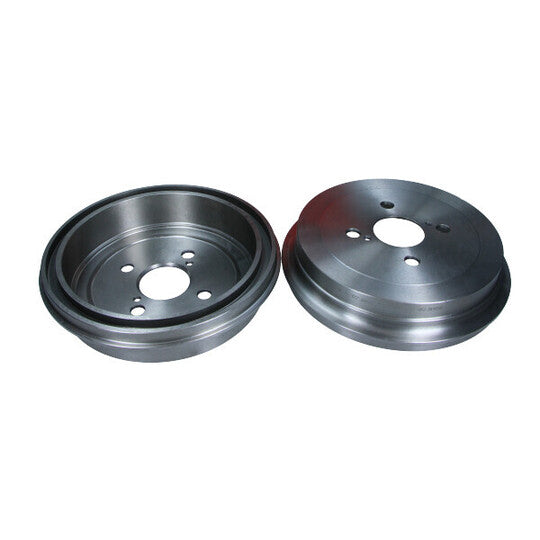

19-3707 Brake Drum
SKU / part number
Maxgear 19-3707 Brake Drum. Part no. 19-3707. Check specifications, vehicle fitment and references below.
Specifications
Centering Diameter
55 | mm
Fitting Position
Rear Axle
Bolt Hole Circle Ø
100 mm
Total brake drum height
53 mm
Inner brake drum height
44 mm
Inner brake drum diameter
200 mm
Outer brake drum diameter
252 mm
Number of Holes
4
max. brake drum reboring dimension
201 mm
Shipping details
Weight
4.617 Kg
Customs Code
870830
Country of Origin
China
OE Numbers
| DAIHATSU | 42431-52070 |
|---|---|
| TOYOTA | 42431-52070 |
Cross-Reference Numbers
| APEC | DRM9965 |
|---|---|
| ASHIKA | 56-02-215 |
| BLUE PRINT | ADBP470032 |
| BOSCH | 0 986 477 296 |
| DAIHATSU | 42431-52070 |
| DELPHI | BF547 |
| FERODO | FDR329821 |
| HELLA | 8DT 355 301-901 |
| HELLA PAGID | 8DT 355 301-901 |
| HERTH+BUSS JAKOPARTS | J3402043 |
| JAPANPARTS | TA-215, TA-215C |
| JAPKO | 56215 |
| JURID | 329821J |
| LPR | 7D0719 |
| MEYLE | 30-15 523 0092 |
| NIPPARTS | N3402054 |
| NK | 254523 |
| OPTIMAL | BT-1690 |
| PAGID | 61364 |
| TEXTAR | 94036100, 98100 0361 0 1 |
| TOYOTA | 42431-52070 |
| TRISCAN | 8120 13221 |
| sbs | 1825254523 |
